220v/380v Small Lube Oil Gear Pump Ex - Proof WCB Series Cast Iron Material

China 220v/380v Small Lube Oil Gear Pump Ex - Proof WCB Series Cast Iron Material supplier
220v/380v Small Lube Oil Gear Pump Ex - Proof WCB Series Cast Iron Material supplier 220v/380v Small Lube Oil Gear Pump Ex - Proof WCB Series Cast Iron Material supplier 220v/380v Small Lube Oil Gear Pump Ex - Proof WCB Series Cast Iron Material supplier

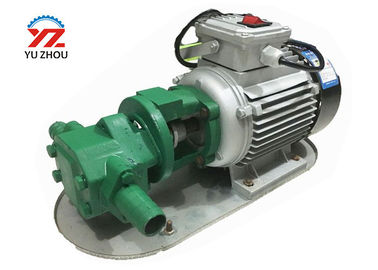

Large Image :  220v/380v Small Lube Oil Gear Pump Ex - Proof WCB Series Cast Iron Material

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: WCB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case package
Delivery Time: 2-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Product Name: Gear Oil Transfer Pump Model: WCB
Feature: Small Volume Material: Cast Iron
OEM: YES Warranty: One Year
High Light:

waste oil gear pump

,

rotary gear oil pump

WCB 220V/380V small portable gear pump ex-proof gear oil transfer pump lube oil gear pump



Product introduction:

WCB small double gear pump portable oil pump electric diesel transfer pump belongs to low pressure micro portable energy-saving oil transfer pump gear pump , the most suitable for no power supply of the oil drum shaft oil sale units, and can also be applied to oil refineries, power plants, power stations, substations (room) oil depots and oil. Thin oil lubrication system of dilute oil transshipment. Such as: conveyor lubrication oil, beverages, low corrosive water, etc., please choose a whole stainless steel pump.



Feature:

WCB small double gear pump portable oil pump electric diesel transfer pump conveying liquid not containing solid particles, the supply temperature is not higher than 70 ℃, convenient maintenance, reliable performance, long service life, appearance is simple and reasonable structure advanced, international standards.



Technical parameters:



Capacity: 30-100 l/min



Pump height: 30 m



Weight: 12-17 kg



Driving power: 370-1100 w .



Product details:



Working Principle: Double Gears
Main applications: Oil (Forbidden Gasoline), Lubricating fluid
Driver: Electric motor
Power Specs:

220V/380V/415V 3phase; 110V/220/240 1phase; 50hz/60hz,etc

Max. permissible fluid temperature 80°C(Anti-oil rubber), 100°C(PTFE)
Type of connection: Thread, Quick couple.
Installation position: Horizontal
Casing parts material: Cast iron, Stainless Steel
Gear mateiral: Cast iron, Stainless Steel, Bronze
Shaft seal type: Anti-oil rubber or PTFE
Maximum viscosity: 300C.S.T
Maximum drive rating: 1.1kW(1.5HP)
Maximum caliber: 25mm(1inch)
Maximum discharge-side pressure 0.3MPa(3bar)
Maximum suction 5m(16.4ft)
Flow rate range: 30-100L/min(7.9-26.4US.GPM)



Technical Parameters:

Model Caliber Capacity Head Motor power Voltage
  (mm) (L/min) (m) (W) (Phase)
WCB-30 Cast iron 20 30 30 370 1ph/3ph
WCB-50   20 50 30 550 1ph/3ph
WCB-75   25 75 30 750 1ph/3ph
WCB-100   25 100 30 1100 1ph/3ph
WCB-30P Stainless steel 20 30 30 370 1ph/3ph
WCB-50P   20 50 30 550 1ph/3ph
WCB-75P   25 75 30 750 1ph/3ph
WCB-100P   25 100 30 1100 1ph/3ph
