High Efficiency Sanitary Lobe Pump With Variable Frequency Converter

China High Efficiency Sanitary Lobe Pump With Variable Frequency Converter supplier
High Efficiency Sanitary Lobe Pump With Variable Frequency Converter supplier High Efficiency Sanitary Lobe Pump With Variable Frequency Converter supplier

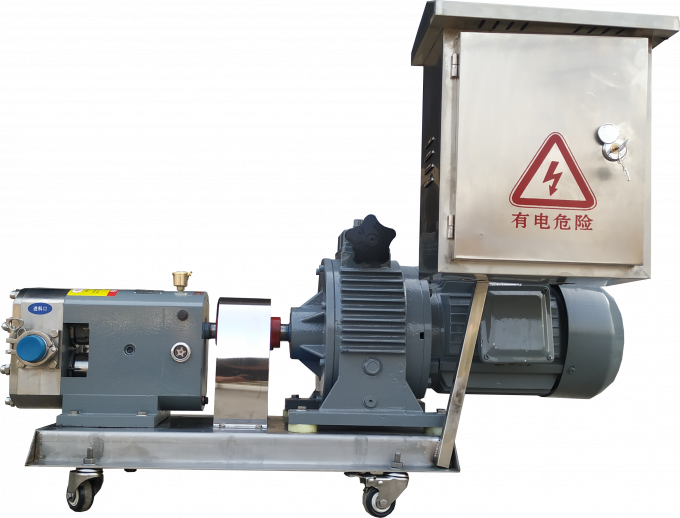

Large Image :  High Efficiency Sanitary Lobe Pump With Variable Frequency Converter

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: 3RP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case Package
Delivery Time: 3-7 Work Days
Payment Terms: T/T, Western Union
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
Production Name: Rotary Lobe Pump Application: High Viscosity Liquid
Color: Gray Seal: Mechanical Seal
Rotor: Bi-Lobe/Tri-Lobe Pump Feature: High Efficiency
Heat: Yes Warranty: 12 Month
High Light:

lobe rotor pump

,

single lobe pump

3RP series variable Frequency Converter rotary lobe pump sanitary feeding pump



Brief introduction



3RP rotor lobe pumps are rotary positive displacement pumps, developed after decades of research and design. The manufacture engineering and accuracy has come up to advanced world level.



Rotor Introduce:

Single impeller: used to transfer medium with a little large grains because this impeller is not easy to damage grains. The shortage if high impulse, low pressure, small capacity, so seldom using.

Double impeller: used to transfer medium with middle or small grains, with low damage rate and low impulse, the capacity is smaller than tr-impeller.

Tri-impeller: this is commonly type, the capacity and performance is better than other rotors. The shortage is high requirement to medium because its easy to damage grain medium.

Multi-impeller: when impeller quantity beyond three, the capacity will decrease when impeller increase. Multi-impeller has high stability while using, but easy to damage grain medium.



Product feature:

High Viscosity Material Feeding Pump

With the characteristics of volume pump, low rotation speed, high output torque, high temperature resisting, the rotor pump plays a very important role in feeding high viscosity, high temperature material fields. It has a unique operation principle matching and can be used matching a powerful driving system, so that the rotor pump can output a powerful driving moment at a low speed and ensure material feeding consistently, without stagnancy, and also can ensure that the material performance in the process of material feeding not be damaged. The medium viscosity can reach 1,000,000CP fed by this pump.



Sanitary Feeding Pump

All parts contacting with material are made of stainless steel which is conforming to sanitary standard, applicable to sanitary and erosion resisting place in fields of food, drinks, pharmacy, chemical industry, etc.



Water cleaning mechanical seal

Mechanical seal configuration with water cleaning function can be provided, preventing equipment normal operation on the end surface of the mechanical seal from coagulation during feeding high viscosity material, and the service life mechanical seal in bad environment can be ensured.



Almost Have No Consumable Parts

It doesn't have any damage on the part during the rotor pump is operating (except mechanical seal), all parts contacting with material is made of stainless steel. A pair of rotors run synchronically during operating in a space with each other, no contact, it won’t be any damage in theory, the rotor pump can work at temperature of 220℃ in all environments.



Item Model Flow Pressure Speed Power Pipe size
L/100r m3/h Mpa rpm kw DN

1

3RP-6 6 1.8 0-1.2 10-500 0.75 20/25

2

3RP-9 9 2.6 0-0.6 10-500 1.1 25/32

3

3RP-18 18 4.3 0-0.2 10-400 1.5 32/50

4

3RP-36 36 8.5 0-0.6 10-400 2.2 50/65

5

3RP-60 60 14.3 0-0.6 10-400 4 65/80

6

3RP-105 105 25 0-1.2 10-400 11 80/100

7

3RP-150 125/250 35 0-0.6 10-400 18.5 100/125

8

3RP-250 250 45 0-0.6 10-400 22 125/150



High Efficiency Sanitary Lobe Pump With Variable Frequency Converter

High Efficiency Sanitary Lobe Pump With Variable Frequency Converter
