Zero Leakage Static Seal Chemical Transfer Pump CQ Series Blastproof Motor Driven

China Zero Leakage Static Seal Chemical Transfer Pump CQ Series Blastproof Motor Driven supplier
Zero Leakage Static Seal Chemical Transfer Pump CQ Series Blastproof Motor Driven supplier Zero Leakage Static Seal Chemical Transfer Pump CQ Series Blastproof Motor Driven supplier

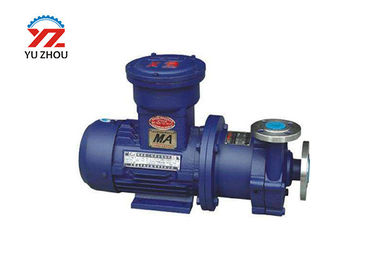

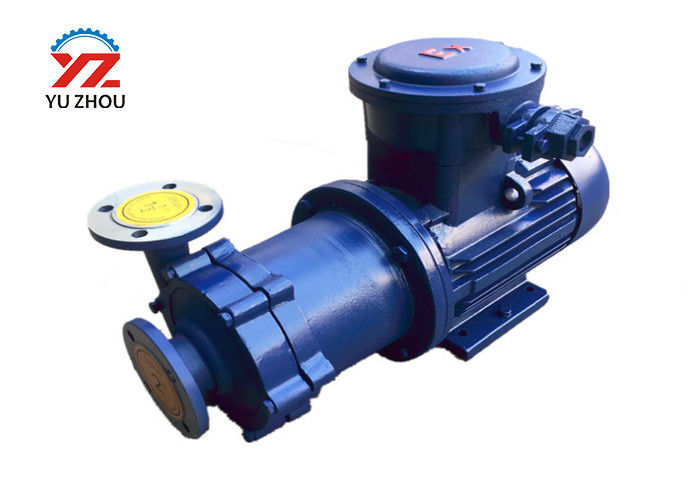

Large Image :  Zero Leakage Static Seal Chemical Transfer Pump CQ Series Blastproof Motor Driven

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: CQ

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case package
Delivery Time: 2-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Product Name: Magnetic Pump Model: CQ
Power: 220v/380v/415v/440v Colour: Customized
OEM: YES Material: Fluorine/Stainless Steel
High Light:

sulfuric acid transfer pump

,

centrifugal transfer pump

CQ series explosion proof motor drive zero-leakage static seal magnetic drive pump


CQ series explosion proof motor drive zero-leakage static seal magnetic drive pump (referred to as magnetic pump) is a new product that uses the working principle of permanent magnet coupling for centrifugal pump. It has reasonable design, advanced technology, full sealing, no leakage and corrosion resistance. Its performance has reached abroad. The advanced level of similar products. The magnetic pump replaces the dynamic seal with a static seal, so that the over-current component of the pump is completely sealed, completely solving the disadvantages of running, escaping and dripping which cannot be avoided by the mechanical seal of other pumps. The magnetic pump is made of corrosion-resistant and high-strength engineering plastic. Steel jade ceramics and stainless steel are used as manufacturing materials, so it has good corrosion resistance and can protect the transport medium from contamination.

The magnetic pump has compact structure, beautiful appearance, small volume, low noise, reliable operation and convenient use and maintenance. Can be widely used in chemical, pharmaceutical, petroleum, electroplating, food, film photofinishing, scientific research institutions, defense industry and other units to pump acid, lye, oil, rare precious liquids, venom, volatile liquids, and circulating water equipment, Filter kit. Especially for the pumping of leaky, flammable and explosive liquids, it is more ideal to use this pump.



CQ series explosion proof motor drive zero-leakage static seal magnetic drive pump Performance data



Model Inlet Outlet Head Capacity Power Speed Voltage



















Stainless steel

(mm) (mm) (m) (L/min) (KW) (r/min) (Phase)
14CQ-5 14 10 5 20 0.18 2800 1ph/3ph
16CQ-8 16 12 8 30 0.18 2800 1ph/3ph
20CQ-12 20 12 12 50 0.37 2800 1ph/3ph
25CQ-15 25 20 15 110 1.1 2800 3phase
32CQ-15 32 25 15 110 1.1 2800 3phase
32CQ-25 32 25 25 90 1.1 2800 3phase
40CQ-20 40 32 20 180 2.2 2800 3phase
40CQ-32 40 32 32 200 4 2800 3phase
50CQ-25 50 40 25 240 4 2800 3phase
50CQ-32 50 40 32 220 4 2800 3phase
50CQ-50 50 32 50 130 5.5 2800 3phase
65CQ-25 65 50 25 280 5.5 2800 3phase
65CQ-32 65 50 32 450 5.5/7.5 2800 3phase
80CQ-32 80 65 32 850 11 2800 3phase
80CQ-50 80 65 50 850 15 2800 3phase
100CQ-35 100 80 35 1000 15 2800 3phase
100CQ-50 100 80 50 1000 18.5 2800 3phase
125CQ-32 125 100 32 1700 22 2800 3phase
125CQ-32 125 100 32 2500 30 1450 3phase
150CQ-25 150 125 25 3350 30 1450 3phase

Zero Leakage Static Seal Chemical Transfer Pump CQ Series Blastproof Motor Driven
