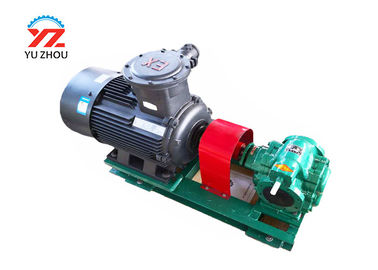

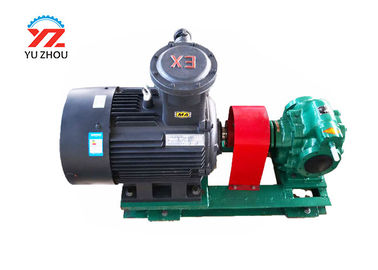

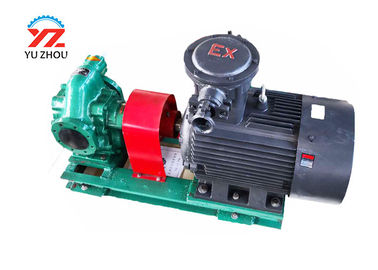

KCB series explosion proof motor Gear Oil transfer pump for transfer diesel oil

China KCB  series explosion proof motor Gear  Oil transfer pump for transfer diesel oil supplier
KCB  series explosion proof motor Gear  Oil transfer pump for transfer diesel oil supplier KCB  series explosion proof motor Gear  Oil transfer pump for transfer diesel oil supplier KCB  series explosion proof motor Gear  Oil transfer pump for transfer diesel oil supplier

Large Image :  KCB series explosion proof motor Gear Oil transfer pump for transfer diesel oil

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: KCB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case package
Delivery Time: 2-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Product Name: Gear Oil Transfer Pump Model: KCB
Application: Diesel Oil Brand: Yuzhou
Warranty: One Year Explosion Proof: Yes
High Light:

gear lube transfer pump

,

rotary gear oil pump

KCB series explosion proof motor Gear Oil transfer pump for transfer diesel oil



Application Scope



  • Various Lubricating oil: crude oil, diesel oil, lubricants, oil-type liquid.
  • With copper gear can transmit low flash point liquid, such as gasoline, benzene.
  • Using stainless steel can pump weak corrosive liquid and food beverage.
  • Normally temperature of liquid should not be over 70 degree Celsius . If requested 300 C, we can make the anti high temperature oil pump for customers.
  • It can give performance as transfer pump or booster pump in oil delivery system.
  • It can be also applied as a fuel pump for delivery system,pressurization and injection in fuel supply system and in all industry fields as lubricating pump.



KCB Gear Oil Pump Structure Features



KCB series gear pumps are mainly composed of gears,axles pump body,pump,cap safety valve and axle-end seals etc.The heat treated gears have the advantage ofhigher hardness and intensity,and rotate with the axles inside the replaceable bearing sleeves.All of pump's parts can be lubricated by delivered medium when working.



It is also designed with safety valve for protection against overload.The full return flow pressure of the safety valve is 1.5times higher than the rated exhaust pressure of the pump.



It can be also adjusted within the allowance of exhaust pressure range according to circumstances .



The pump is properly designed with leakage and return chute,which lets the gears bear the least torque force and reduces load and wear on bearings bear the least torque force and reduces load and wear on bearings in order to raise pump's efficiency.



Technical Parameters:



Model Capacity Q Speed
r/min
Exhaust
Pressure
Mpa
(NPSH)r
m
Efficiency
%
Motor
m 3 /h L/min Power
kw
Model
KCB-18.3 1.1 18.3 1400 1.45 5 44 1.5 Y90L-4
2CY-1.1/1.45
KCB-33.3 2 33.3 1420 1.45 5 44 2.2 Y100L1-4
2CY-2/1.45
KCB-55 3.3 55 1400 0.33 7 41 1.5 Y90L-4
2CY-3.3/0.33
KCB-83.3 5 83.3 1420 0.33 7 43 2.2 Y100L1-4
2CY-5/0.33
KCB-135 8 135 940 0.33 5 46 2.2 Y112M-6
2CY-8/0.33
KCB-200 12 200 1440 0.33 5 46 4 Y112M-4
2CY-12/0.33
KCB-300 18 300 960 0.36 5 42 5.5 Y132M2-6
2CY-18/0.36
KCB-483.3 29 483.3 1440 0.36 5.5 42 11 Y160M-4
2CY-29/0.36
KCB-633 38 633 970 0.28 6 43 11 Y160L-6
2CY-38/0.28
KCB-960 58 960 1470 0.28 6.5 43 18.5 Y180M-4
2CY-58/0.28
KCB-1200 72 1200 740 0.6 7 43 37 Y280S-8
KCB-1600 95 1600 980 45 Y280S-6
KCB-1800 112 1800 740 0.6 7.5 43 55 Y315S-8
KCB-2500 150 2500 985 75 Y315S-6
KCB-2850 170 2850 740 0.6 8 44 90 Y315L1-8
KCB-3800 230 3800 989 110 Y315L1-6
KCB-4100 245 4100 743 0.6 8 44 132 Y355M1-8
KCB-5400 325 5400 989 160 Y355M1-6
KCB-5600 330 5600 744 0.6 8 44 160 Y355M2-8
KCB-7600 460 7600 989 200 Y355M3-6
KCB-7000 420 7000 744 0.6 8 44 185 Y355L1-8
KCB-9600 570 9600 989 250 Y355L2-6

KCB  series explosion proof motor Gear  Oil transfer pump for transfer diesel oil
