Product Details:
Payment & Shipping Terms:
|
| Product Name: | Centrifugal Water Pump | Material: | Cast Iron /stainless Steel |
|---|---|---|---|
| Explosion Proof: | YES | Theory: | Centrifugal Pump |
| OEM Service: | Yes | Warranty: | One Year |
| High Light: | sulfuric acid transfer pump,centrifugal transfer pump |
||

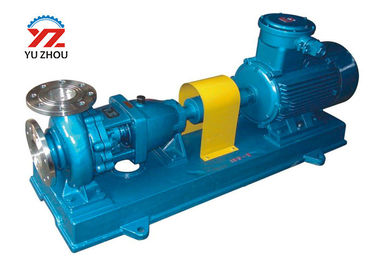

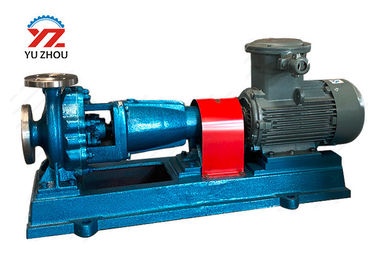

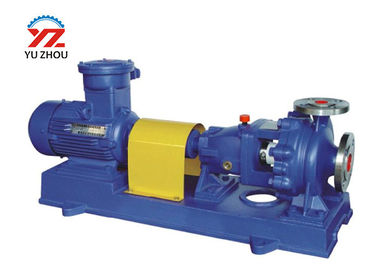

IH series horizontal acid resistant stainless steel chemical centrifugal pump
1. IH chemical pump is of single -stage suction anti-corrosive centrifugal chemical pump (axial suction) to transport the corrosive liquid which doesn't contain granule and is similar with the water in adherence. It's label rate and size meet with the Standard of ISO2858 and the technology condition meets with the standard of GB/T5656-1994.
It features various performance.
High efficiency and easy access repair.
The efficiency is 5% higher than that of the model F. It is the preferentially recommended product.
THe medium temperature is between 28 ºC to 105ºC
The additional measurement in mechanical seal and cooling measurement can ensure transportation of higher temperature of medium.
2. It is widely used at the industries to transport kinds of corrosive medium and the medium similar with water which must be immune to pollution such as petroleum, chemistry, metallurgy, synthetic fiber, Pharmacy, foodstuff, waste water treatment
3. Performance of series IH pump
Flow rate Q: 6.3-400m3/h
Total head H: 5-125 M
Speed rotation: 2900 rpm or 1450 rpm
Power: 0.55kw-110kw
Inlet diameter: 50-200mm
Max. Working pressure: 1.6Mpa
4: Model explanation ( IH50-32-160A as example)
IH- Single-stage suction anti-corrosive chemical pump of international standard
50--diameter of the pump suction (mm)
32---diameter of the pump outlet (mm)
160---nominal diameter of impeller (mm)
A- First of cutting outer diameter of impeller
Horizontal Multistage Centrifugal Pump
1. Multistage centrifugal
2. Inlet and outlet are both at horizontal
3. Small vibration
| Working Principle: | Standard Centrifugal, end suction |
| Main applications: | Chemical |
| Driver: | Electric motor, diesel engine |
| Power Specs: | 220V,240V,380V,400V,415V,440V 50hz/60hz |
| Max.permissible fluid temperature: | 80°C / 100°C(IR hot water type) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing/Inner parts material: | Cast iron/Cast iron |
| Shaft seal type: | Packing seal, Mechanical seal |
| Maximum drive rating: | 90KW(120HP) |
| Maximum caliber: | 200mm(8inch) |
| Maximum discharge-side pressure: | 1.25MPa(12.5bar) |
| Maximum head: | 125m(410ft) |
| Flow rate range: | 6.3-400m3/h(27.7-1760US.GPM) |
Technical data
|
Model |
Flow (m3/h) |
Lift Head (m) |
Rev (r/min) |
Power (kw) |
Diameter(mm) | |
| Inlet | Outlet | |||||
| 50-32-125 | 12.5 | 20 | 2900 | 2.2 | 50 | 32 |
| 6.3 | 5 | 1450 | 0.55 | |||
| 50-32-160 | 12.5 | 32 | 2900 | 3 | ||
| 6.3 | 8 | 1450 | 0.55 | |||
| 50-32-200 | 12.5 | 50 | 2900 | 5.5 | ||
| 6.3 | 12.5 | 1450 | 0.75 | |||
| 50-32-250 | 12.5 | 80 | 2900 | 11 | ||
| 6.3 | 20 | 1450 | 1.5 | |||
| 65-50-125 | 25 | 20 | 2900 | 3 | 65 | 50 |
| 12.5 | 5 | 1450 | 0.55 | |||
| 65-50-160 | 25 | 32 | 2900 | 5.5 | ||
| 12.5 | 8 | 1450 | 0.75 | |||
| 65-40-200 | 25 | 50 | 2900 | 7.5 | 65 | 40 |
| 12.5 | 12.5 | 1450 | 1.1 | |||
| 65-40-250 | 25 | 80 | 2900 | 15 | ||
| 12.5 | 20 | 1450 | 2.2 | |||
| 65-40-315 | 25 | 125 | 2900 | 30 | ||
| 12.5 | 32 | 1450 | 4 | |||
| 80-65-125 | 50 | 20 | 2900 | 5.5 | 80 | 65 |
| 25 | 5 | 1450 | 0.75 | |||
| 80-65-160 | 50 | 32 | 2900 | 7.5 | ||
| 25 | 8 | 1450 | 1.5 | |||
| 80-50-200 | 50 | 50 | 2900 | 15 | 80 | 50 |
| 25 | 12.5 | 1450 | 2.2 | |||
| 80-50-250 | 50 | 80 | 2900 | 22 | ||
| 25 | 20 | 1450 | 3 | |||
| 80-50-315 | 50 | 125 | 2900 | 37 | ||
| 25 | 32 | 1450 | 5.5 | |||
| 100-80-125 | 100 | 20 | 2900 | 11 | 100 | 80 |
| 50 | 5 | 1450 | 1.5 | |||
| 100-80-160 | 100 | 32 | 2900 | 15 | ||
| 50 | 8 | 1450 | 2.2 | |||
| 100-65-200 | 100 | 50 | 2900 | 22 | 100 | 65 |
| 50 | 12.5 | 1450 | 4 | |||
| 100-65-250 | 100 | 80 | 2900 | 37 | ||
| 50 | 20 | 1450 | 5.5 | |||
| 100-65-315 | 100 | 125 | 2900 | 75 | ||
| 50 | 32 | 1450 | 11 | |||
| 125-100-200 | 200 | 50 | 2900 | 45 | 125 | 100 |
| 100 | 12.5 | 1450 | 7.5 | |||
| 125-100-250 | 200 | 80 | 2900 | 75 | ||
| 100 | 20 | 1450 | 11 | |||
| 125-100-315 | 200 | 125 | 2900 | 110 | ||
| 100 | 32 | 1450 | 15 | |||
| 125-100-400 | 100 | 50 | 1450 | 30 | 125 | 100 |
| 150-125-250 | 200 | 20 | 1450 | 18.5 | 150 | 125 |
| 150-125-315 | 200 | 32 | 1450 | 30 | ||
| 150-125-400 | 200 | 50 | 1450 | 45 | ||
| 200-150-250 | 400 | 20 | 1450 | 37 | 200 | 150 |
| 200-150-315 | 400 | 32 | 1450 | 55 | ||
| 200-150-400 | 400 | 50 | 1450 | 90 | ||
