220v 50hz 60hz Electric Chemical Transfer Pump IH Series Non Corrosive

China 220v 50hz 60hz Electric Chemical Transfer Pump IH Series Non Corrosive supplier
220v 50hz 60hz Electric Chemical Transfer Pump IH Series Non Corrosive supplier 220v 50hz 60hz Electric Chemical Transfer Pump IH Series Non Corrosive supplier

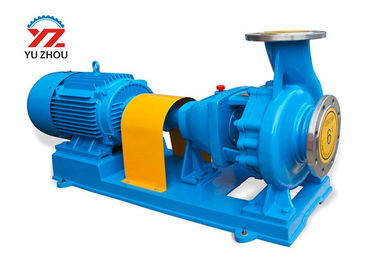

Large Image :  220v 50hz 60hz Electric Chemical Transfer Pump IH Series Non Corrosive

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: IH

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Plywood case package
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Product Name: Centrifugal Water Pump Application: Water
Material: Cast Iron /stainless Steel Mode: Horizontal
Colour: Customized Power: Electric
High Light:

sulfuric acid transfer pump

,

centrifugal transfer pump

IH series horizontal acid resistant stainless steel chemical centrifugal pump



1. IH chemical centrifugal pump is an energy-saving pump designed

2. Pump is for water or liquid similar to water, with high temperature mechanical seal it also could be used to transfer hot water.

3. IH pump is simple, reliable, small, light, and with good anti-cavitation performance, little power consumption and easy to maintain.

4. It applies to work in system of industry and city water supply & drainage, water supercharging of high rise building, park spray irrigation, water pressurize in fire control, remote water delivery, cycle refrigeration of heating and ventilation, circulatory supercharger of cold-warm water in bathroom, etc.





Working Principle: Standard Centrifugal, end suction
Main applications: Chemical
Driver: Electric motor, diesel engine
Power Specs: 220V,240V,380V,400V,415V,440V 50hz/60hz
Max.permissible fluid temperature: 80°C / 100°C(IR hot water type)
Type of connection: Flange
Installation position: Horizontal
Casing/Inner parts material: Cast iron/Cast iron
Shaft seal type: Packing seal, Mechanical seal
Maximum drive rating: 90KW(120HP)
Maximum caliber: 200mm(8inch)
Maximum discharge-side pressure: 1.25MPa(12.5bar)
Maximum head: 125m(410ft)
Flow rate range: 6.3-400m3/h(27.7-1760US.GPM)







Technical data





Model

Flow

(m3/h)

Lift Head

(m)

Rev

(r/min)

Power

(kw)

Diameter(mm)
Inlet Outlet
50-32-125 12.5 20 2900 2.2 50 32
6.3 5 1450 0.55
50-32-160 12.5 32 2900 3
6.3 8 1450 0.55
50-32-200 12.5 50 2900 5.5
6.3 12.5 1450 0.75
50-32-250 12.5 80 2900 11
6.3 20 1450 1.5
65-50-125 25 20 2900 3 65 50
12.5 5 1450 0.55
65-50-160 25 32 2900 5.5
12.5 8 1450 0.75
65-40-200 25 50 2900 7.5 65 40
12.5 12.5 1450 1.1
65-40-250 25 80 2900 15
12.5 20 1450 2.2
65-40-315 25 125 2900 30
12.5 32 1450 4
80-65-125 50 20 2900 5.5 80 65
25 5 1450 0.75
80-65-160 50 32 2900 7.5
25 8 1450 1.5
80-50-200 50 50 2900 15 80 50
25 12.5 1450 2.2
80-50-250 50 80 2900 22
25 20 1450 3
80-50-315 50 125 2900 37
25 32 1450 5.5
100-80-125 100 20 2900 11 100 80
50 5 1450 1.5
100-80-160 100 32 2900 15
50 8 1450 2.2
100-65-200 100 50 2900 22 100 65
50 12.5 1450 4
100-65-250 100 80 2900 37
50 20 1450 5.5
100-65-315 100 125 2900 75
50 32 1450 11
125-100-200 200 50 2900 45 125 100
100 12.5 1450 7.5
125-100-250 200 80 2900 75
100 20 1450 11
125-100-315 200 125 2900 110
100 32 1450 15
125-100-400 100 50 1450 30 125 100
150-125-250 200 20 1450 18.5 150 125
150-125-315 200 32 1450 30
150-125-400 200 50 1450 45
200-150-250 400 20 1450 37 200 150
200-150-315 400 32 1450 55
200-150-400 400 50 1450 90





220v 50hz 60hz Electric Chemical Transfer Pump IH Series Non Corrosive
