Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: RY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case Package
Delivery Time: 3-7 Work Days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
Product Name: Hot Oil Transfer Pump Max Temperature: 350 Degrees
Max Capacity: 400m3/h Power: Electric And Diesel
Brand: Yuzhou Voltage: 220V/380V/415V/440V /460V
High Light:

thermal oil circulation pump

,

boiler feed water pump

RY Horizontal High Temperature 1 inch 2 inch 3 inch 4 inch 5 inch hot heavy fuel oil circulation transfer pump



Brief introduction

  • RY series 350 Degree C heat boiler thermal hot oil pump is suitable for heat-conduction oil, or other hot oils with temperature ≤350°C
  • It has a reasonable structure, advanced technology, high efficiency, long-term stable operation without leakage in the hot state. Used to transport not containing solid particles of corrosion high temperature liquid with system of directly wind cooling.
  • It's widely used in petroleum oil, chemical industry, rubber, leather, food industry, grease, boilers, construction, road maintenance, pharmaceutical, plastics, rubber, synthetic fiber textile, printing and dyeing and other industrial fields.

Construction

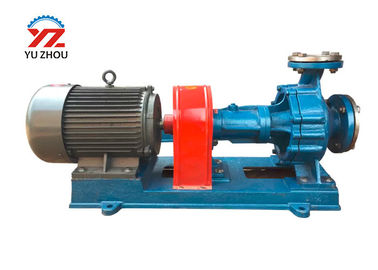

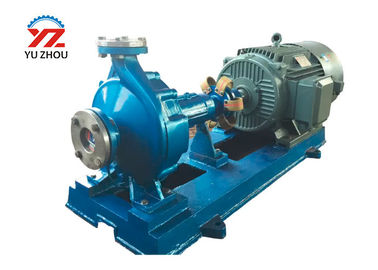

  • With the single grade swing construction,RY hot oil centrifugal pump consists of two kinds, foot supporting and core-supporting.The entrance of the pump is axial absorbing,and core straight up for outlet. The pump and the driving motor are installed together at the same seat through elastic coupling.and the whole machine group does not require cooling system.
  • The main pat include,body case,rotor,bearing,seal parts.the pumps connected motor with tr-pawl elastic coupling.
  • On the whole,this pump reforms the traditional construction,choosing natural cooling type,reducing the volume,simplifying the construction and save carving



Technical details:

Model

Flow

( m³/h)

Lift

(m)

Speed

(r/min)

Shaft Power(kw)

Power

(kW)

Efficiency

(%)

20-20-100 1 10 2800 0.09 0.75 26
20-20-125 1.5 22 2800 0.22 0.75 30
25-25-160 3 27 2900 0.53 1.5 30
32-32-160 6 28 2900 0.85 1.5 50
40-25-160 10 28 2900 1.72 2.2 45
40-25-200 10 50 2900 3.30 4.0 50
50-32-160 12.5 30 2900 1.90 3.0 57
20-20-100 1 10 2800 0.09 0.75 26
20-20-125 1.5 22 2800 0.22 0.75 30
25-25-160 3 27 2900 0.53 1.5 30
32-32-160 6 28 2900 0.85 1.5 50
40-25-160 10 28 2900 1.72 2.2 45
40-25-200 10 50 2900 3.30 4.0 50
50-32-160 12.5 30 2900 1.90 3.0 57
50-32-200 12.5 50 2900 3.78 5.5 45
50-32-200 18 40 2900 3.95 5.5 50
50-32-200A 16 32 2900 3.35 4.0 42
50-32-250 12.5 80 2900 6.20 11 44
50-32-250 18 70 2900 7.6 11 45
50-32-250A 16 60 2900 6.20 7.5 42
65-50-160 20 32 2900 3.17 5.5 55

65-40-200

25

50

2900

5.87

7.5

58
65-40-200 30 48 2900 6.30 7.5 62
65-40-200A 25 35 2900 4.00 5.5 59
65-40-250 25 80 2900 10.3 15 53
65-40-250A 20 51 2900 5.67 7.5 49
65-40-315 25 125 2900 18.9 30 45
65-40-315A 22.5 100 2900 15.3 22 40
80-50-200 40 52 2900 8.85 15 64
80-50-200 50 50 2900 9.70 15 70
80-50-200 60 46 2900 11.0 15 70
80-50-200A 45 40 2900 7.80 11 63
80-50-200B 40 32 2900 6.37 7.5 55
80-50-250 50 80 2900 18.7 22 58
80-50-250 60 72 2900 19.6 22 60
80-50-250A 43 60 2900 12.80 15 55
80-50-315 50 125 2900 30.4 45 56
80-50-315A 45 100 2900 23.6 30 52
100-65-200 80 53 2900 16.50 22 70
100-65-200 100 50 2900 18.40 22 74
100-65-200A 94 44 2900 16.00 22 70
100-65-200B 87 38 2900 13.80 15 65
100-65-200C 80 32 2900 11.80 15 59
100-65-250 80 85 2900 28.90 37 64
100-65-250 100 80 2900 32.06 37 68
100-65-250A 95 72 2900 29.00 37 64
100-65-250B 90 65 2900 26.20 30 61
100-65-315 80 130 2900 45.00 75 63
100-65-315 100 125 2900 50.06 75 68
100-65-315A 95 113 2900 45.23 55 64
100-65-315B 90 100 2900 40.50 55 60
100-65-315C 82 84 2900 34.76 45 54
125-80-160 160 50 2900 28.70 22 76
125-80-200 160 50 2900 28.7 37 76
125-80-200 180 45 2900 29.4 37 75
125-80-250 160 80 2900 47.75 55 73
125-80-250A 140 70 2900 39.20 45 69
125-100-200 180 52 2900 34 45 75
125-100-200 200 50 2900 35.4 45 77
125-100-200A 178 40 2900 26.60 37 73
125-100-250 200 70 2900 47.00 55 80
125-100-250 230 62 2900 51.80 55 75
125-100-250A 190 63 2900 44.00 55 74
125-100-250B 180 57 2900 40.00 45 70
125-100-250C 170 51 2900 34.72 45 68
125-100-250D 150 70 2900 40.00 45 70
125-100-315 200 125 2970 95.80 110 72
125-100-315 230 115 2970 103 110 70
125-100-315A 180 100 2970 70.10 90 70
150-150-200 250 56 2970 50.10 75 77
150-150-200 300 50 2970 52.00 75 79
150-150-250 300 80 2970 83.79 110 78
150-150-250A 260 80 2970 2970 75.50 90
150-150-250B 270 65 2970 66.50 75 72
200-150-400 350 50 1480 61.10 75 78
200-150-400A 330 45 1480 52.80 75 77
200-200-500 400 80 1480 117.7 132 74
250-200-400 500 50 1480 86.20 110 79
250-200-500 500 80 1480 143.5 160 76
250-200-500A 400 50 1480 75 90 73
300-300-500 800 80 1480 229 280 76
