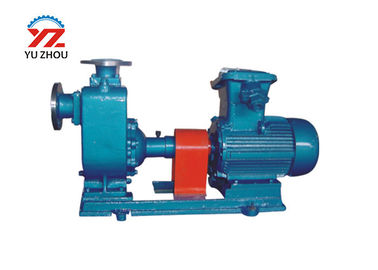

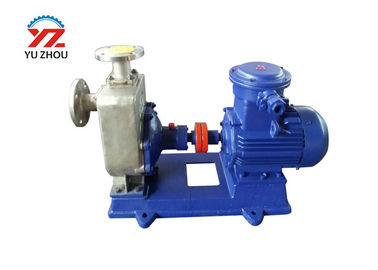

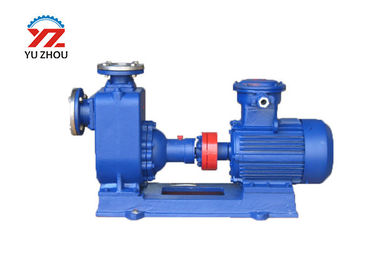

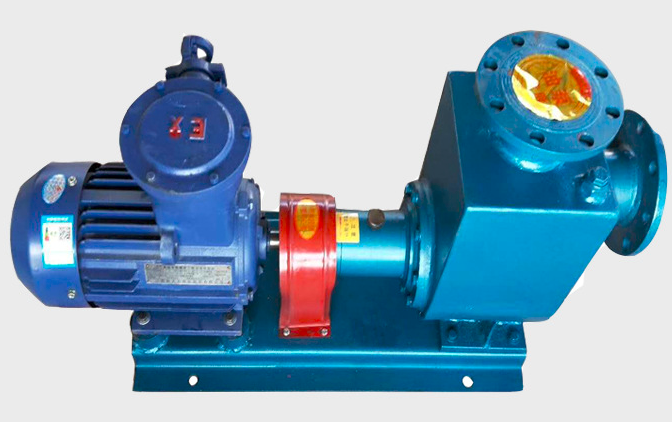

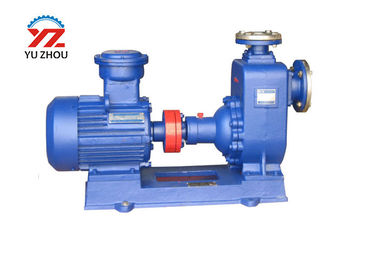

Explosion Proof Self Priming Oil Transfer Pump For Oil Fuel Transfer High Efficiency

China Explosion Proof Self Priming Oil Transfer Pump For Oil Fuel Transfer High Efficiency supplier
Explosion Proof Self Priming Oil Transfer Pump For Oil Fuel Transfer High Efficiency supplier Explosion Proof Self Priming Oil Transfer Pump For Oil Fuel Transfer High Efficiency supplier Explosion Proof Self Priming Oil Transfer Pump For Oil Fuel Transfer High Efficiency supplier Explosion Proof Self Priming Oil Transfer Pump For Oil Fuel Transfer High Efficiency supplier

Large Image :  Explosion Proof Self Priming Oil Transfer Pump For Oil Fuel Transfer High Efficiency

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: CYZ

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Plywood case package
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Product Name: Self Priming Oil Transfer Pump OEM: YES
Colour: Customized Fuel: Eletrical And Diesel
Temperature: 20℃-- 80℃ Warranty: 1 Year
High Light:

diesel oil transfer pump

,

oil drain pump

CYZ series explosion proof motor self priming oil tranfser pump for gas oil kerosene oil fuel oil

CYZ pumps are used to deliver the petrol, kerosene, diesel and other petroleum product; and the temperature of medium is -20℃~+80℃. It is a kind of load and unload oil pump in boat. And it can be used to convey oil in the land oil depot and oil truck. In addition, the pump also can carry the sea water and fresh water.



Application



1. It can give performance as transfer pump or booster in oil deliver system.



2. It can be also applied as fuel pump for delivery system, pressurization and injection in fuel supply system.



3. It can be also hydraulic pump supplying hydraulic power in hydraulic system;



4. In all industry fields it can be as lubricating pump.



Structure Features

This pump belongs to self-priming centrifugal oil pump, and the feature is simple construction, easy operation, convenient repairing, high displacement, high efficiency, wide application scope etc.



The pump is composed of suction room, store liquid room, vortex room, liquid returning hole, gas and liquid dividing room etc. The pumps adopt the single-row radial ball bearings, and have the cooling room in the bottom of the bearing stand, and a seal ring is used between the high press and low press area in the pump. They adopt mechanical seals on shaft end.

Performance Data:

Model Flow Head Suction Rev Power Diameter (mm)
(m3/h) (L/S) (m) (m) (r/min) (KW) Inlet Outlet
25CYZ-20 3.2 0.9 20 6.5 2900 0.75 25 25
25CYZ-32 3.2 0.9 32 6.5 2900 1.5 25 25
40CYZ-20 6.3 1.8 20 6.5 2900 1.1 40 32
40CYZ-40 10 2.8 40 6.5 2900 4 50 40
50CYZ-12 15 4.2 12 6.5 2900 1.5 50 50
50CYZ-20 18 5 20 6.5 2900 2.2 50 50
50CYZ--35 14 3.9 35 6.5 2900 4 50 50
50CYZ-40 10 2.8 40 6.5 2900 4 50 50
50CYZ-50 12.5 3.5 50 6.5 2900 5.5 50 50
50CYZ-60 15 4.2 60 6.5 2900 7.5 50 50
50CYZ-75 20 5.6 75 6.5 2900 11 50 50
65CYZ-15 30 8.3 15 6.5 2900 3 65 50
65CYZ-32 25 6.9 32 6 2900 5.5 65 50
80CY-13 35 9.7 13 6 2900 3 80 65
80CYZ-17 43 12 17 6 2900 4 80 65
80CYZ-22 40 11.1 22 6 2900 5.5 80 65
80CYZ-25 50 13.9 25 6 2900 7.5 80 80
80CYZ-32 50 13.9 25 6 2900 7.5 80 80
80CYZ-55 60 16.7 55 6 2900 18.5 80 80
80CYZ-70 60 16.7 70 6 2900 22 80 80
100CYZ-20 100 27.8 20 6 2900 11 100 80
100CYZ-40 100 27.8 40 6 2900 22 100 100
100CYZ-40A 100 27.8 40 6 1450 22 100 100
100CYZ-65 100 27.8 65 6 2900 30 100 100
100CYZ-75 70 19.4 75 6 2900 30 100 100
150CYZ-45 170 47.2 45 5 2900 37 150 100
150CYZ-55 170 47.2 55 5 2900 45 150 100
150CYZ-65 170 47.2 65 5 2900 55 150 100
150CYZ-80 160 44.4 80 5 2900 55 150 100
200CYZ-63 280 77.8 63 5 1450 90 200 150
250CYZ-50 400 111.1 50 5 1450 90 250 200
300CYZ-50 500 138.9 50 5 1450 110 300 250

Explosion Proof Self Priming Oil Transfer Pump For Oil Fuel Transfer High Efficiency
