Product Name: | Chemical Pump | Application: | Acid ,Alkali |
---|---|---|---|
MOQ: | 1set | Delivery: | 3-7 Days |
Package: | Plywood Case Packing | Material: | Fluoroplastics |
High Light: | sulfuric acid transfer pump,chemical centrifugal pump |

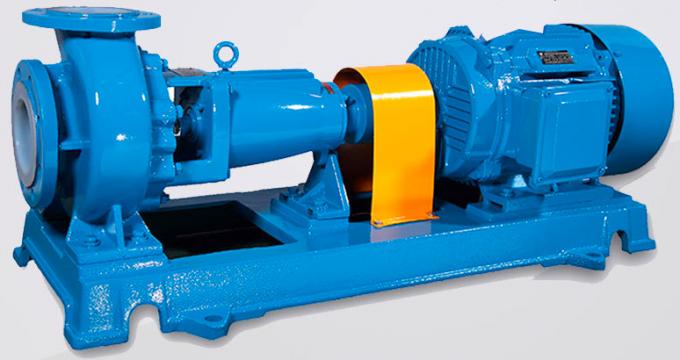

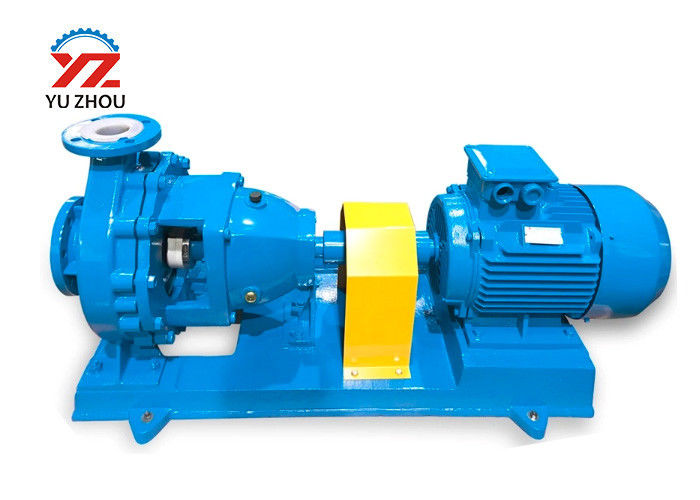

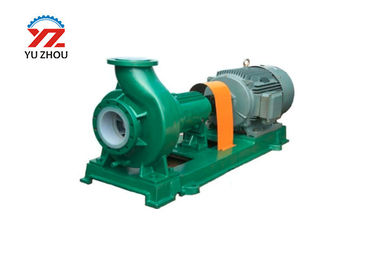

IHF alkali resistance Fluoroplastics chemical centrifugal transfer pump
Application:
1. IHF metal lined fluorine plastic pump chemical centrifugal pump is wearing resistant, corrosion resistant, thermos table, non-aging, strong mechanical strength, running stable, advanced in structure, sealing reliable, easy to maintain and long service life.
2. Working for highly corrosive mediums between -85°C~120°C (-121°F~248°F), such as arbitrary concentration of vitriol, muriatic acid, hydrofluoric acid, nitric acid, aqua regia, strong base, strong oxidant, organic solvent, reducing agent, etc.
3. The casing is metal lined with FEP, PVDF, PTFE etc. Cover, impeller and shaft sleeve is metal insert with fluorine plastic jacket, inlet & outlet is strengthened with cast steel. All wet parts of pump are made of fluorine plastic.
4. Pump is widely used in chemistry, pharmacy, petroleum, metallurgy, smelting, electricity, electroplating, dye, farm chemical, paper making, food, spinning or other industries.
Operating range:
Flow: up to 400 m3/h, max 1761 GPM
Head: 80 m; 410 feet
Temperature: - 20 °C to +150 °C; -68 °F to +302 °F
Application Liquid:
pumps for sulphuric acid plant Applilcation:
Item | Fluoroplastic lining in chemical pump |
Suction | End |
Model | IHF series |
Material | Fluoroplatic |
Mode | Horizontal |
Drive | Direct coupling |
Temperature | -85 to 200 degree C |
Seal | Mechanical seal |
Speed | 2900r/min/1450r/min |
Theory | Centrifugal |
Pressure | High or low pressure |
Usage | Acid,Alkali or strong corrosive liquid |
Power | Electric |
Standard or Non | Standard |
Outlet diameter | 25-250mm |
Capacity | 0.8-400m³/h |
Head | 5-115m |
Power | 0.37-90kw |
Warranty | 12 months |
Certificate | ISO9001:2008 |
OEM | Acceptable |
Feature | Special for chemicals |
Technical data
Model | Inlet (mm) | Outlet (mm) | Flow m 3 /h) | Head (m) | Power (kw) | Rotary speed (r/min) | (NPSH) r(m) |
IHF50-32-125 | 50 | 32 | 12.5 | 20 | 2.2 | 2900 | 3 |
IHF50-32-160 | 50 | 32 | 12.5 | 32 | 4 | 2900 | 3 |
IHF50-32-200 | 50 | 32 | 12.5 | 50 | 7.5 | 2900 | 3 |
IHF65-50-125 | 65 | 50 | 25 | 20 | 3 | 2900 | 3.5 |
IHF65-50-160 | 65 | 50 | 25 | 32 | 5.5 | 2900 | 3.5 |
IHF65-40-200 | 65 | 40 | 25 | 50 | 11 | 2900 | 3.5 |
IHF80-65-125 | 80 | 65 | 50 | 20 | 5.5 | 2900 | 4 |
IHF80-65-160 | 80 | 65 | 50 | 32 | 11 | 2900 | 4 |
IHF80-50-200 | 80 | 50 | 50 | 50 | 15 | 2900 | 4 |
IHF100-80-125 | 100 | 80 | 100 | 20 | 11 | 2900 | 4.5 |
IHF100-80-160 | 100 | 80 | 100 | 32 | 15 | 2900 | 4.5 |
IHF100-65-200 | 100 | 65 | 100 | 50 | 30 | 2900 | 4.5 |
