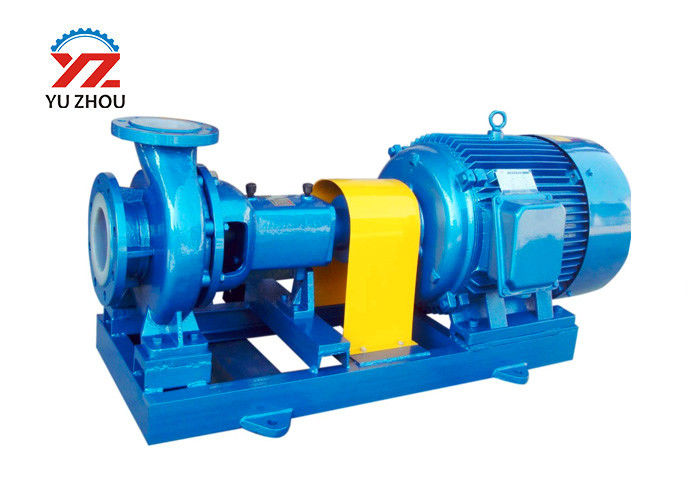

IHF series high Concentration Sulfuric Acid Pump PTFE Lining pump Chemical Transfer Pump
1. Summarize
IHF type lining fluorine centrifugal pump is a single-stage single-suction centrifugal pump designed according to the international standard ISO2858. It has high temperature and strong corrosion resistance and is widely used in chemical, pharmaceutical, petroleum, metallurgy, electric power, electroplating, printing and dyeing, pesticide, paper, jewelry, chemical fiber and other industries.
2. Usage
This pump can be used to transport sulfuric acid, nitro-hydrochloric acid, strong oxidative and strong corrosive media, it is one of the most advanced corrosion- proof equipments at present.
3. Characteristic
Anti- corrosion, wearability, high temperature resistance,nonaging, high mechanical strength, non-toxin decomposition and wide temperature range of use
Operating range:
Flow: up to 400 m3/h, max 1761 GPM
Head: 80 m; 410 feet
Temperature: - 20 °C to +150 °C; -68 °F to +302 °F
1. IHF centrifugal chemical FEP lined pump is working for highly corrosive mediums between -85°C~100°C, such as arbitrary concentration of vitriol, muriatic acid, hydrofluoric acid, nitric acid, aqua regia, strong base, strong oxidant, organic solvent, reducing agent, etc.
2. The casing is metal lined with FEP. Cover, impeller and shaft sleeve is metal insert with fluorine plastic jacket, inlet & outlet is strengthened with cast steel. All wet parts of pump are made of fluorine plastic.
3. The FEP lined pump is wearing resistant, corrosion resistant, thermos table, non-aging, strong mechanical strength, running stable, advanced in structure, sealing reliable, easy to maintain and long service life.
4. The centrifugal chemical pump is widely used in chemistry, pharmacy, petroleum, metallurgy, smelting, electricity, electroplating, dye, farm chemical, papermaking, food, spinning or other industries.
| Item | Fluoroplastic lining in chemical pump |
| Suction | End |
| Model | IHF series |
| Material | Fluoroplatic |
| Mode | Horizontal |
| Drive | Direct coupling |
| Temperature | -85 to 200 degree C |
| Seal | Mechanical seal |
| Speed | 2900r/min/1450r/min |
| Theory | Centrifugal |
| Pressure | High or low pressure |
| Usage | Acid,Alkali or strong corrosive liquid |
| Power | Electric |
| Standard or Non | Standard |
| Outlet diameter | 25-250mm |
| Capacity | 0.8-400m³/h |
| Head | 5-115m |
| Power | 0.37-90kw |
| Warranty | 12 months |
| Certificate | ISO9001:2008 |
| OEM | Acceptable |
| Feature | Special for chemicals |
Technical data
| Model | Inlet (mm) | Outlet (mm) | Flow m 3 /h) | Head (m) | Power (kw) | Rotary speed (r/min) | (NPSH) r(m) |
| IHF50-32-125 | 50 | 32 | 12.5 | 20 | 2.2 | 2900 | 3 |
| IHF50-32-160 | 50 | 32 | 12.5 | 32 | 4 | 2900 | 3 |
| IHF50-32-200 | 50 | 32 | 12.5 | 50 | 7.5 | 2900 | 3 |
| IHF65-50-125 | 65 | 50 | 25 | 20 | 3 | 2900 | 3.5 |
| IHF65-50-160 | 65 | 50 | 25 | 32 | 5.5 | 2900 | 3.5 |
| IHF65-40-200 | 65 | 40 | 25 | 50 | 11 | 2900 | 3.5 |
| IHF80-65-125 | 80 | 65 | 50 | 20 | 5.5 | 2900 | 4 |
| IHF80-65-160 | 80 | 65 | 50 | 32 | 11 | 2900 | 4 |
| IHF80-50-200 | 80 | 50 | 50 | 50 | 15 | 2900 | 4 |
| IHF100-80-125 | 100 | 80 | 100 | 20 | 11 | 2900 | 4.5 |
| IHF100-80-160 | 100 | 80 | 100 | 32 | 15 | 2900 | 4.5 |
| IHF100-65-200 | 100 | 65 | 100 | 50 | 30 | 2900 | 4.5 |
