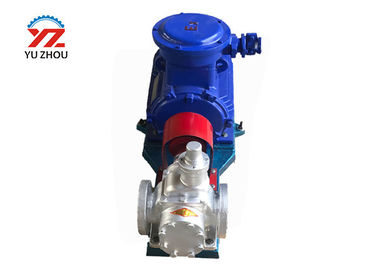

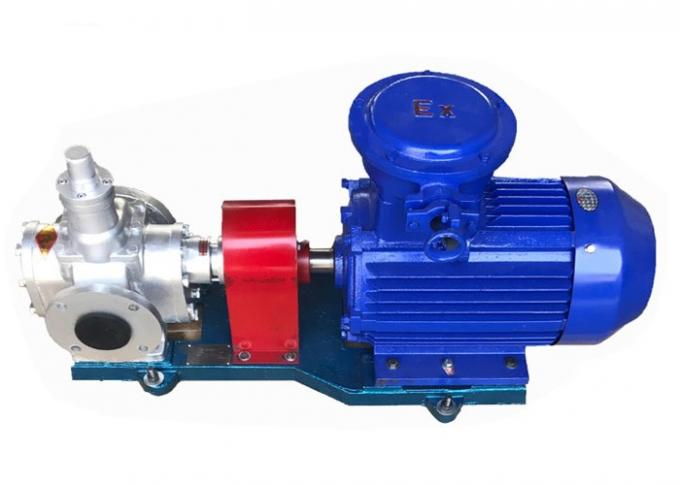

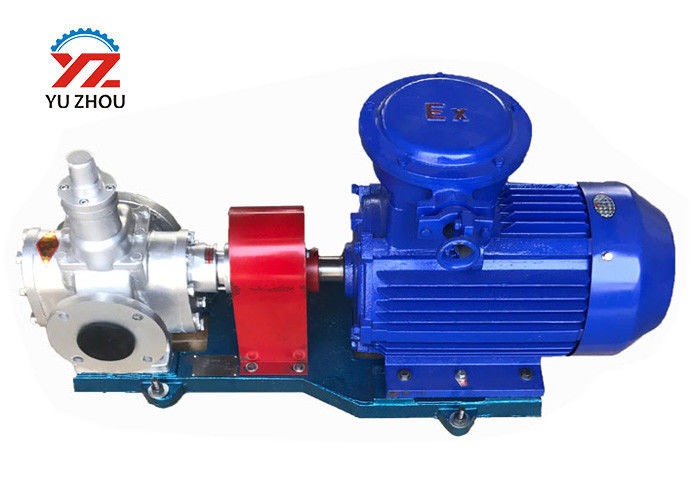

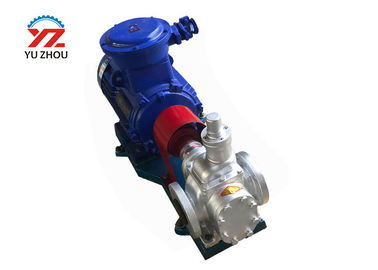

YCB series high performance stainless steel explosion proof gear oil pump

China YCB series high performance stainless steel explosion proof gear oil pump supplier
YCB series high performance stainless steel explosion proof gear oil pump supplier YCB series high performance stainless steel explosion proof gear oil pump supplier YCB series high performance stainless steel explosion proof gear oil pump supplier

Large Image :  YCB series high performance stainless steel explosion proof gear oil pump

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: YCB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case package
Delivery Time: 2-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Structure: Gear Pump Usage: Oil
Power: Electric Pressure: High Pressure
Casing Material: Cast Iron, Stainless Steel Temperature: ≤300 Degrees
Viscosity: 5-1500cst Warranty Of Pump: 12 Months
Working Environment: Indoor Or Outdoor Voltage: 380v/220v/415v/440v
High Light:

waste oil gear pump

,

rotary gear oil pump

YCB series high performance stainless steel explosion proof gear oil pump

Application:
YCB series circular gear pump applies to delivering non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres at temperature below 300℃ and with the viscosity of 5-1500cSt.
It applies to hydraulic system, too.
Reducing the speed, the pump can delivery the liquid that the viscosity can be up to 500000cSt.

Application Scope:

  1. It can give performance as transfer pump or booster in oil deliver system.
  2.  It can be also applied as fuel pump for delivery system, pressurization and injection in fuel supply system.
  3.  It can be also hydraulic pump supplying hydraulic power in hydraulic system;
  4. In all industry fields it can be as lubricating pump.


Advantages:

  • In the gear meshing process, the tooth profile surface has no relative sliding, so the tooth surface has no wear
  • Smooth running
  • Fluid free phenomenon
  • Low noise
  • Long life
  • High efficiency

Model explanation

YCB5—0.6

5 capacitym3/h;
0.6pressure MPa;
B stands for “beng” which means PUMP in Chinese;
C stands for “chi” which means GEAR in Chinese;
Y stands for“yuan” which means circular arc in Chinese;

Technical Parameters:


Model

Flow

(m3/h)

Presure

(Mpa)

Rev
(r/min)
Npshr
(m)

Frequency

(hz)

YCB0.6-0.6

0.6

1.0

0.7

1.2

0.6

910

1390

1130

1710

5.5

50

50

60

60

YCB0.6-1.6

0.6

1.0

0.7

1.2

1.6

910

1400

1130

1710

7.0

50

50

60

60

YCB1.6-0.6

1.6

2.5

1.9

3.0

0.6

910

1400

1130

1710

5.5

50

50

60

60

YCB1.6-1.6

1.6

2.5

1.9

3.0

1.6

940

1440

1150

1750

7.0

50

50

60

60

YCB3.3-0.6

3.3

5.0

4.0

6.0

0.6

940

1420

1150

1730

5.0

50

50

60

60

YCB3.3-1.6

3.3

5.0

4.0

6.0

1.6

960

1440

1170

1750

7.0

50

50

60

60

YCB4-0.6

4.0

6.0

4.8

7.2

0.6

940

1420

1150

1730



5.0

50

50

60

60

YCB4-1.6

4.0

6.0

4.8

7.2

1.6

960

1440

1170

1750

7.0

50

50

60

60

YCB8-0.6

8.0

12.0

9.6

14.4

0.6

960

1440

1170

1750

5.0

50

50

60

60

YCB8-1.6

8.0

12.0

9.6

14.4

1.6

970

1460

1170

1760

7.0

50

50

60

60


Construction of gear pump




YCB series high performance stainless steel explosion proof gear oil pump
