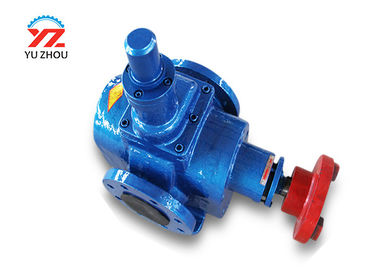

YCB series bare pump gear oil transfer pump cast iron material with safe valve

China YCB series bare pump gear oil transfer pump cast iron material with safe valve supplier
YCB series bare pump gear oil transfer pump cast iron material with safe valve supplier YCB series bare pump gear oil transfer pump cast iron material with safe valve supplier

Large Image :  YCB series bare pump gear oil transfer pump cast iron material with safe valve

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: YCB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case package
Delivery Time: 2-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Product Name: Gear Oil Transfer Pump Usage: Oil / Vegetable Oil
Power: Electric Motor Casing Material: Cast Iron, Stainless Steel
Colour: Customized Place Of Original: China
High Light:

waste oil gear pump

,

gear lube transfer pump

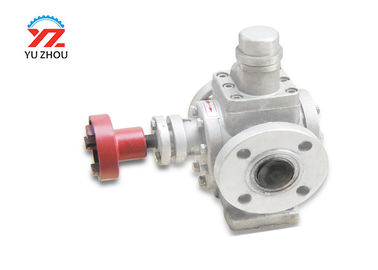

YCB series bare pump gear oil transfer pump cast iron and stainless steel material

Application:


YCB series circular gear pump applies to delivering non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres at temperature below 300℃ and with the viscosity of 5-1500cSt.
It applies to hydraulic system, too.
Reducing the speed, the pump can delivery the liquid that the viscosity can be up to 500000cSt.

Application Scope:

  1. It can give performance as transfer pump or booster in oil deliver system.
  2.  It can be also applied as fuel pump for delivery system, pressurization and injection in fuel supply system.
  3.  It can be also hydraulic pump supplying hydraulic power in hydraulic system;
  4. In all industry fields it can be as lubricating pump.


Advantages:

  • In the gear meshing process, the tooth profile surface has no relative sliding, so the tooth surface has no wear
  • Smooth running
  • Fluid free phenomenon
  • Low noise
  • Long life
  • High efficiency

Technical Parameters:


Model

Flow

(m3/h)

Presure

(Mpa)

Rev
(r/min)
Npshr
(m)

Frequency

(hz)

YCB0.6-0.6

0.6

1.0

0.7

1.2

0.6

910

1390

1130

1710

5.5

50

50

60

60

YCB0.6-1.6

0.6

1.0

0.7

1.2

1.6

910

1400

1130

1710

7.0

50

50

60

60

YCB1.6-0.6

1.6

2.5

1.9

3.0

0.6

910

1400

1130

1710

5.5

50

50

60

60

YCB1.6-1.6

1.6

2.5

1.9

3.0

1.6

940

1440

1150

1750

7.0

50

50

60

60

YCB3.3-0.6

3.3

5.0

4.0

6.0

0.6

940

1420

1150

1730

5.0

50

50

60

60

YCB3.3-1.6

3.3

5.0

4.0

6.0

1.6

960

1440

1170

1750

7.0

50

50

60

60

YCB4-0.6

4.0

6.0

4.8

7.2

0.6

940

1420

1150

1730



5.0

50

50

60

60

YCB4-1.6

4.0

6.0

4.8

7.2

1.6

960

1440

1170

1750

7.0

50

50

60

60

YCB8-0.6

8.0

12.0

9.6

14.4

0.6

960

1440

1170

1750

5.0

50

50

60

60

YCB8-1.6

8.0

12.0

9.6

14.4

1.6

970

1460

1170

1760

7.0

50

50

60

60



Troubles and Solutions



Troubles

Productive

Reason



Solutions



Discharging oil or discharging little oil

1.Revolving direction reversed

2.Valve closed

3.Oil absorption tube has not been soaked into the oil

4.The high of absorption exceeds the rated

5.The filtering area of the filter at absorption end is too small

6.Air leakage in absorption tube

7.Safety valve blocked or doesn’t work well

8. Lower temperature of oil results in viscosity increasing

1.Change in to right direction 2.Open valve

3.Check out oil absorption tube and soak it in the liquid 4.Measure absorption pressure and raise the oil level 5.Change filter and extend the filtering area6.Check every joint and seal them with sealing material 7.Disassemble and wash safety valve and polish with abrasive grease 8. Heat liquid or reduce exhausting pressure or the volume of oil exhaustion

No pressure or pressure not rising 1.The button of the pressure meter is still in OFF position 2.The pressure of the safety valve is too low3.Side tube valve is on 4.High temperature,low viscosity o foil and small resistance of the tube 5.Air leakage in the tube 1.Press the button ON of the pressure meter2.Readjust the safety valve pressure 3.Close the side tube valve 4.Reduce oil temperature 5. Check out absorption tube
Oil leakage in mechanical seal 1.Shaft seal has not been adjusted properly 2.O-seal ring wear 3.The defects caused by wearing of stationary and rotating rings of mechanical seal4.Spring flabby 1.Adjust it 2.Change O-seal 3.Change stationary and rotating rings or polish the magain4.Change spring
Noise and vibration 1.Improper assembling 2.The in concentricity of pump shaft and motor shaft 3.Absorption tube or filter stopped up 4.Absorption tube dimension is too small and long.It could not pump in,for resistance is too big 5.Oil exhaustion tube’s resistance is too big6.Air leakage 7.Fastener is relaxed 8.Gears and bearings stand sides show serious wear and tear or gripped 1.Check out and maintain 2.adjust it 3.Clear dirt things in the absorption tube or filter 4.Read just it 5.Check up whether exhaustion tube or valve are stopped up6.Check up and maintain7.Check up and tighten it 8.Disassemble and maintain or change them
Safely valve unworkable 1.Wrong position2.Pressure too high 3.Safety valve chip gripped 1.Reassembling it2.Lower the pressure 3.Disassembling,wash and adjust

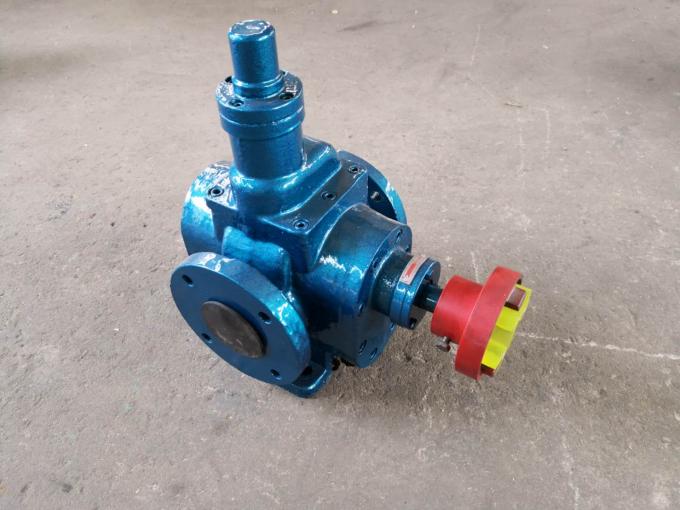

YCB series bare pump gear oil transfer pump cast iron material with safe valve

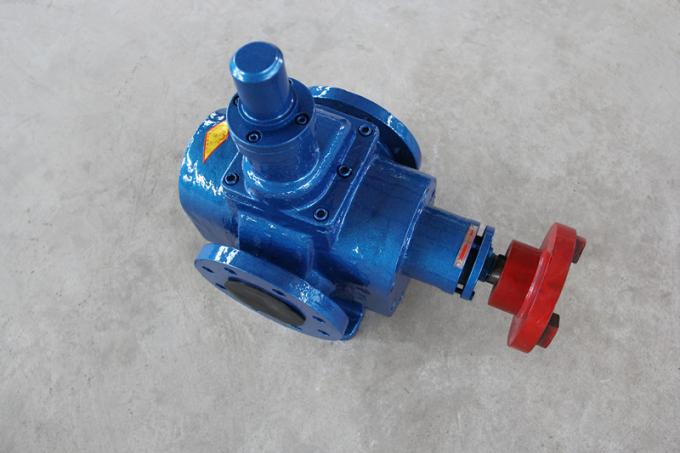

YCB series bare pump gear oil transfer pump cast iron material with safe valve
