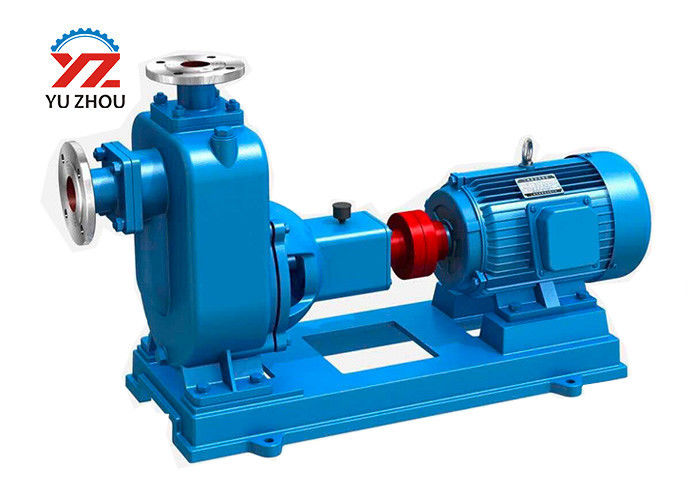

Large Image :  Water Transfer Horizontal Centrifugal Pump , ZX Series Self Priming Centrifugal Pump

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: ZX

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Plywood case package
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Product Name: Self Priming Water Transfer Pump Type: Centrifugal Pump
Material: Cast Iron/stainless Steel MOQ: One Set
Warranty: One Year Power: Motor / Diesel Engine
High Light:

centrifugal water pump

,

self priming suction pump

ZX series self-priming water transfer pump self priming horizontal centrifugal pump

ZX series self-priming pump falls into the category of self-priming centrifugal pump, which has such advantages as compact structure, easy operation, stable running, easy maintenance, high efficiency, long life and strong self-priming capacity. The bottom valve needn′ t be mounted in the pipeline. It ′s only necessary to reserve a fixed quantity of guide liquid in the pump body before work. Therefore, it simplifies the pipeline system and also improves the labor conditions.



Range of Application:



1.It is applicable for city environmental protection, building, fire control, chemical engineering, pharmacy, dyestuff, printing and dyeing, brewage, electricity, electroplating, paper making ,petroleum, mine, equipment cooling, tanker discharging, etc.



2.It is applicable for clear water, seawater, liquid containing acid or alkali chemical medium, and generally pasty slurry (medium viscosity≤100cP and solid content less than 30%).



3.When it′s mounted with an arm sprayer, it can jet the water into the air to disperse into little raindrops for spraying , so it is a good tool for farm, nursery, orchar and tea garden.



4.It can work with any types and specifications of filter press, so it is an ideal type to deliver the slurry to the filter for the filter pressing.



Technology Parameters:



No Type Caliber (mm) Flow (m3/h) Head (m) Power (kw) Speed (r/min) Self-Priming height (m)
1 25ZX3.2-20 25 3.2 20 1.1 2900 6.5
2 25ZX3.2-32 25 3.2 32 1.5 2900 6.5
3 32ZX3.2-20 32 3.2 20 1.1 2900 6.5
4 32ZX3.2-32 32 3.2 32 1.5 2900 6.5
5 32ZX3.2-50 32 3.2 50 3 2900 6.5
6 40ZX6.3-20 40 6.3 20 1.5 2900 6.5
7 40ZX6.3-32 40 6.3 32 2.2 2900 6.5
8 40ZX10-40 40 10 40 4 2900 6.5
9 40ZX6.3-50 40 6.3 50 4 2900 6.5
10 50ZX15-12 50 15 12 1.5 2900 6.5
11 50ZX18-20 50 18 20 2.2 2900 6.5
12 50ZX12.5-32 50 12.5 32 3 2900 6.5
13 50ZX12.5-40 50 12.5 40 4 2900 6.5
14 50ZX12.5-50 50 12.5 50 5.5 2900 6.5
15 50ZX20-30 50 20 30 4 2900 6.5
16 50ZX14-35 50 14 35 4 2900 6.5
17 50ZX10-40 50 10 40 4 2900 6.5
18 50ZX15-60 50 15 60 7.5 2900 6.5
19 50ZX20-75 50 20 75 11 2900 6.5
20 65ZX30-15 65 30 15 3 2900 6.5
21 65ZX25-32 65 25 32 5.5 2900 6
22 65ZX25-50 65 25 50 7.5 2900 6
23 65ZX25-70 65 25 70 15 2900 6
24 80ZX35-13 80 35 13 3 2900 6
25 80ZX43-17 80 43 17 4 2900 6
26 80ZX40-22 80 40 22 5.5 2900 6



No. Type Caliber (mm) Flow  (m3/h) Head  (m) Power (kw) Speed  (r/min) Self-Priming height  (m)
27 80ZX50-20 80 50 20 5.5 2900 6
28 80ZX50-25 80 50 25 7.5 2900 6
29 80ZX50-32 80 50 32 7.5 2900 6
30 80ZX50-40 80 50 40 11 2900 6
31 80ZX60-55 80 60 55 18.5 2900 6
32 80ZX60-70 80 60 70 22 2900 6
33 100ZX80-20 100 80 20 11 2900 6
34 100ZX100-20 100 100 20 11 2900 6
35 100ZX100-32 100 100 32 15 2900 6
36 100ZX100-40 100 100 40 18.5 2900 6
37 100ZX100-50 100 100 50 22 2900 6
38 100ZX100-65 100 100 65 30 2900 6
39 100ZX70-75 100 70 75 30 2900 6
40 150ZX180-28 150 180 28 30 2900 6
41 150ZX170-55 150 170 55 45 2900 5
42 150ZX170-65 150 170 65 55 2900 5
43 150ZX160-80 150 160 80 55 2900 5
44 200ZX400-32 200 400 32 55 1450 5
45 200ZX280-63 200 280 63 90 1450 5
46 200ZX350-65 200 350 65 110 1450 5
47 250ZX550-32 250 550 32 75 1450 5
48 250ZX400-50 250 400 50 90 1450 5
49 250ZX450-55 250 450 55 110 1450 5
50 300ZX600-32 300 600 32 90 1450 5
51 300ZX500-50 300 500 50 110 1450 5
52 300ZX550-55 300 550 55 132 1450 5
