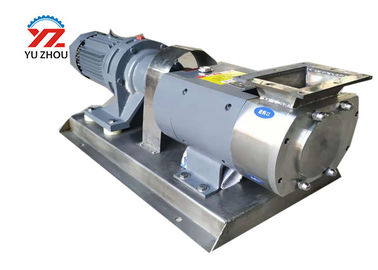

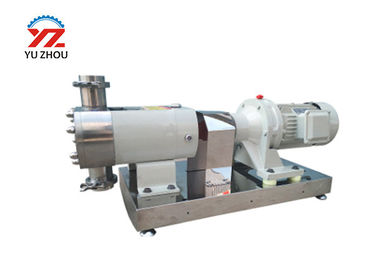

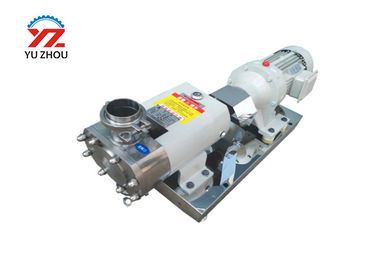

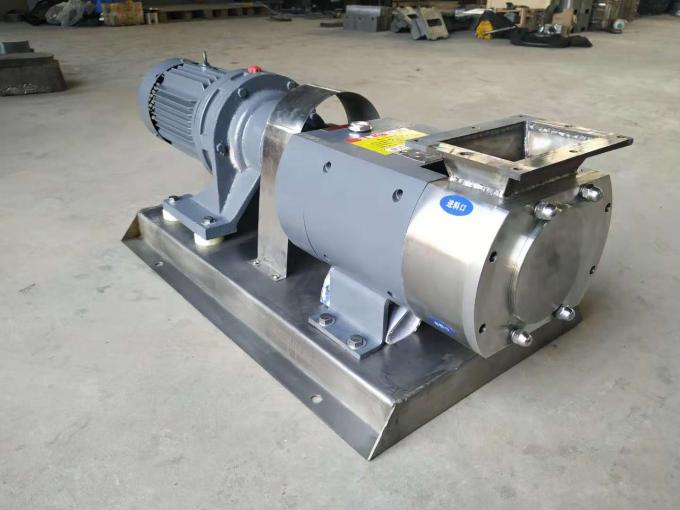

Up Down Type Food Transfer Pump High Viscosity For Shampoo Resin Conveying

3RP series Up and down stainless steel rotor pump food conveying pump high viscosity shampoo resin conveying pump

Brief introduction

3RP rotor lobe pumps are rotary positive displacement pumps, developed after decades of research and design. The manufacture engineering and accuracy has come up to advanced world level.

Main Application Characteristics

High Viscosity Material Feeding Pump

With the characteristics of volume pump, low rotation speed, high output torque, high temperature resisting, the rotor pump plays a very important role in feeding high viscosity, high temperature material fields. It has a unique operation principle matching and can be used matching a powerful driving system, so that the rotor pump can output a powerful driving moment at a low speed and ensure material feeding consistently, without stagnancy, and also can ensure that the material performance in the process of material feeding not be damaged. The medium viscosity can reach 1,000,000CP fed by this pump.

Sanitary Feeding Pump

All parts contacting with material are made of stainless steel which is conforming to sanitary standard, applicable to sanitary and erosion resisting place in fields of food, drinks, pharmacy, chemical industry, etc.

Water cleaning mechanical seal

Mechanical seal configuration with water cleaning function can be provided, preventing equipment normal operation on the end surface of the mechanical seal from coagulation during feeding high viscosity material, and the service life mechanical seal in bad environment can be ensured.

Product feature:

Almost Have No Consumable Parts

It doesn't have any damage on the part during the rotor pump is operating (except mechanical seal), all parts contacting with material is made of stainless steel. A pair of rotors run synchronically during operating in a space with each other, no contact, it won’t be any damage in theory, the rotor pump can work at temperature of 220℃ in all environments.

1. Between Rotor and stator keep a certain gap,no friction coefficient and long service life.

2. High efficiency and energy saving,conveying smooth,low failure rate, reliable sealing and low noise.

3. Simple assembly and dis assembly ,maintenance,cleaning is convenient,less easy worn parts.

4. To keep the continuity of operation reliability and no leak time.

5. After to use of special material,may conveying the sludge and sewage containing solid grain of the granular.

6. May conveying the medium viscosity for less than or equal to one million cp,and contain solid content is sixty percent of the slurry.

7. May conveying the vapor,fluid and solid three-phase mixed material.

8. This pump to use special stainless steel,can conveying strong corrosive fluid.

9. Configuration frequency transfer,can adjust flow,and can make the general metering pump use.

10. According to user needs,in the pump shell increase thermal insulation and health-grade safety valve.

11. Have a strong self suction.

12. Conveying medium ingredients won’t change.

13. According to the user requirements of connect,can choose flange,threaded type,fast interface type and mobile

Rotor Introduce:

Single impeller: used to transfer medium with a little large grains because this impeller is not easy to damage grains. The shortage if high impulse, low pressure, small capacity, so seldom using.

Double impeller: used to transfer medium with middle or small grains, with low damage rate and low impulse, the capacity is smaller than tr-impeller.

Tri-impeller: this is commonly type, the capacity and performance is better than other rotors. The shortage is high requirement to medium because its easy to damage grain medium.

Multi-impeller: when impeller quantity beyond three, the capacity will decrease when impeller increase. Multi-impeller has high stability while using, but easy to damage grain medium.
