Product Details:
Payment & Shipping Terms:
|

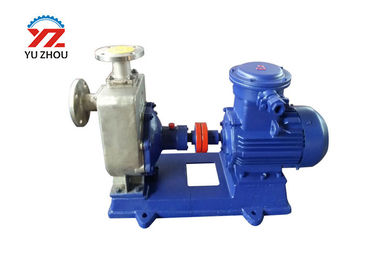

| Product Name: | Self Priming Oil Transfer Pump | Packing: | Standard Wooden Case Packing |
|---|---|---|---|
| Application: | Oil | Feature: | Self Priming |
| Motor: | 220v /380v /415v/50hz /60hz | Warranty: | 12 Month |
| High Light: | diesel oil transfer pump,oil drain pump |
||
Application
1. It can give performance as transfer pump or booster in oil deliver system.
2. It can be also applied as fuel pump for delivery system, pressurization and injection in fuel supply system.
3. It can be also hydraulic pump supplying hydraulic power in hydraulic system;
4. In all industry fields it can be as lubricating pump.
Structure Features
This pump belongs to self-priming centrifugal oil pump, and the feature is simple construction, easy operation, convenient repairing, high displacement, high efficiency, wide application scope etc.
The pump is composed of suction room, store liquid room, vortex room, liquid returning hole, gas and liquid dividing room etc. The pumps adopt the single-row radial ball bearings, and have the cooling room in the bottom of the bearing stand, and a seal ring is used between the high press and low press area in the pump. They adopt mechanical seals on shaft end.
Performance Data:
| Model | Flow | Head | Suction | Rev | Power | Diameter (mm) | ||
| (m3/h) | (L/S) | (m) | (m) | (r/min) | (KW) | Inlet | Outlet | |
| 25CYZ-20 | 3.2 | 0.9 | 20 | 6.5 | 2900 | 0.75 | 25 | 25 |
| 25CYZ-32 | 3.2 | 0.9 | 32 | 6.5 | 2900 | 1.5 | 25 | 25 |
| 40CYZ-20 | 6.3 | 1.8 | 20 | 6.5 | 2900 | 1.1 | 40 | 32 |
| 40CYZ-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 4 | 50 | 40 |
| 50CYZ-12 | 15 | 4.2 | 12 | 6.5 | 2900 | 1.5 | 50 | 50 |
| 50CYZ-20 | 18 | 5 | 20 | 6.5 | 2900 | 2.2 | 50 | 50 |
| 50CYZ--35 | 14 | 3.9 | 35 | 6.5 | 2900 | 4 | 50 | 50 |
| 50CYZ-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 4 | 50 | 50 |
| 50CYZ-50 | 12.5 | 3.5 | 50 | 6.5 | 2900 | 5.5 | 50 | 50 |
| 50CYZ-60 | 15 | 4.2 | 60 | 6.5 | 2900 | 7.5 | 50 | 50 |
| 50CYZ-75 | 20 | 5.6 | 75 | 6.5 | 2900 | 11 | 50 | 50 |
| 65CYZ-15 | 30 | 8.3 | 15 | 6.5 | 2900 | 3 | 65 | 50 |
| 65CYZ-32 | 25 | 6.9 | 32 | 6 | 2900 | 5.5 | 65 | 50 |
| 80CY-13 | 35 | 9.7 | 13 | 6 | 2900 | 3 | 80 | 65 |
| 80CYZ-17 | 43 | 12 | 17 | 6 | 2900 | 4 | 80 | 65 |
| 80CYZ-22 | 40 | 11.1 | 22 | 6 | 2900 | 5.5 | 80 | 65 |
| 80CYZ-25 | 50 | 13.9 | 25 | 6 | 2900 | 7.5 | 80 | 80 |
| 80CYZ-32 | 50 | 13.9 | 25 | 6 | 2900 | 7.5 | 80 | 80 |
| 80CYZ-55 | 60 | 16.7 | 55 | 6 | 2900 | 18.5 | 80 | 80 |
| 80CYZ-70 | 60 | 16.7 | 70 | 6 | 2900 | 22 | 80 | 80 |
| 100CYZ-20 | 100 | 27.8 | 20 | 6 | 2900 | 11 | 100 | 80 |
| 100CYZ-40 | 100 | 27.8 | 40 | 6 | 2900 | 22 | 100 | 100 |
| 100CYZ-40A | 100 | 27.8 | 40 | 6 | 1450 | 22 | 100 | 100 |
| 100CYZ-65 | 100 | 27.8 | 65 | 6 | 2900 | 30 | 100 | 100 |
| 100CYZ-75 | 70 | 19.4 | 75 | 6 | 2900 | 30 | 100 | 100 |
| 150CYZ-45 | 170 | 47.2 | 45 | 5 | 2900 | 37 | 150 | 100 |
| 150CYZ-55 | 170 | 47.2 | 55 | 5 | 2900 | 45 | 150 | 100 |
| 150CYZ-65 | 170 | 47.2 | 65 | 5 | 2900 | 55 | 150 | 100 |
| 150CYZ-80 | 160 | 44.4 | 80 | 5 | 2900 | 55 | 150 | 100 |
| 200CYZ-63 | 280 | 77.8 | 63 | 5 | 1450 | 90 | 200 | 150 |
| 250CYZ-50 | 400 | 111.1 | 50 | 5 | 1450 | 90 | 250 | 200 |
| 300CYZ-50 | 500 | 138.9 | 50 | 5 | 1450 | 110 | 300 | 250 |
