Product Details:
Payment & Shipping Terms:
|
Product Name: | Multistage Centrifugal Pump | Material: | Stainless Steel 304/316/316L |
---|---|---|---|
Motor: | 220v /380v /415v/50hz /60hz | Colour: | Customized |
Application: | Water | OEM: | YES |
High Light: | multistage centrifugal water pump,boiler water circulating pump |

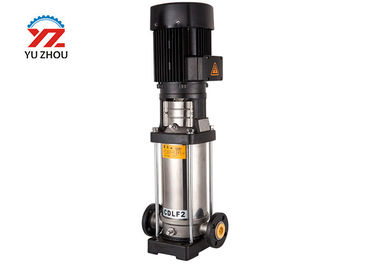

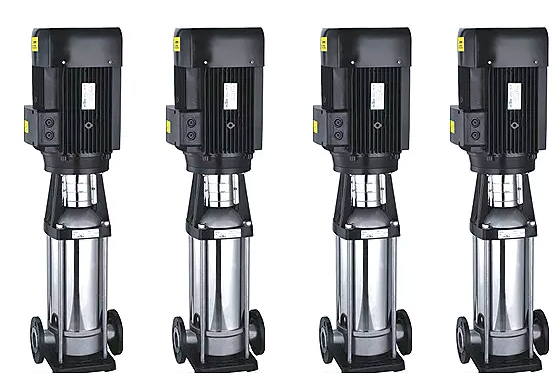

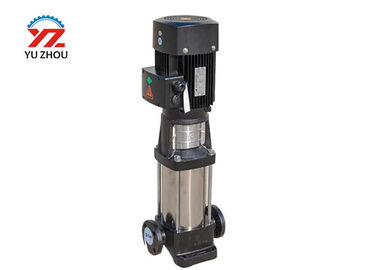

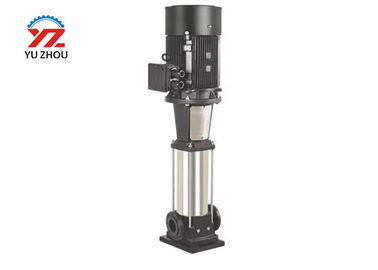

CDL/CDLF series stainless steel vertical multistage centrifugal pump high pressure water pump
Brief Introduction
Multistage Centrifugal Pump CDL/CDLF is a kind of multi function product with wide application. It may transmit various mediums including water or industrial liquid and is suitable for different temperature, flow rate and range of pressure. Its typical application mainly includes the following aspects,
CDL/CDLF is a kind of multifunctional products. It can be used to convery various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, with CDLF is suitable for slightly corrosive liquid.

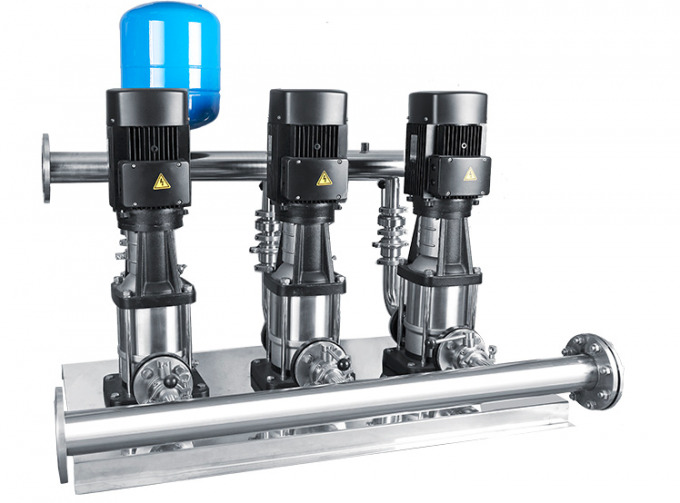

1. Water supply: Water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.
2. Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system.
3. Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali.
4. Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
5. Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.
Features:
1. Compact structure, this series Multistage Centrifugal Pumps are horizontal structure, motors and pumps assembled into one, beautiful appearance, small area, compared with the normal horizontal pump, the area reduce by 30%.
2. Multistage Centrifugal Pumps are balanced running, low noise, high components concentricity.
3. No leakage Multistage Centrifugal Pumps.
4. Convenient maintenance Multistage Centrifugal Pumps.
5. From the inlet direction of this series Multistage Centrifugal Pump, the outlet of the pump can be installed arbitrarily in straight up way.
Operation Conditions
1) Clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
2) Liquid temperature: Normal temperature type:-15℃~ +70℃ ; Hot water type:-15℃~ +120℃
3) Ambient temperature: up to +40℃
4) Altitude:up to 1000m
5) When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.
6) PH 5-8
Note:Special demands can be negotiated.
Motor
1. Full-enclosed air cooled type two-pole standard motor
2. Protection Class: IP55
3. Insulation Class: F
4. Standard Voltage: 50Hz: 1 x 220-230 / 240V
3 x 200-220 / 346-380V
3 x 220-240 / 380-415 V
3 x 3 80-415 V
Working Principle: | Centrifugal, Multistage |
Main applications: | Water |
Driver: | Electric motor |
Power Specs: | 220V/380/415V 3phase; 220/240V 1phase; 50hz/60hz,etc |
Max.permissible fluid temperature: | 80℃/120°C(hot water type) |
Type of connection: | Flange connection |
Installation position: | Vertical |
Impeller/diffuser/inducer/shaft material: | Stainless steel 304 or 316 |
Shaft seal type: | Mechanical seal |
Maximum drive rating: | 110KW(150HP) |
Maximum caliber: | 150mm(6inch) |
Maximum dischrage-side pressure: | 2.55MPa(25.5bar) |
Maximum head: | 255m(836.4ft) |
Flow rate range: | 1-240m3/h(4.4-1056US.GPM) |

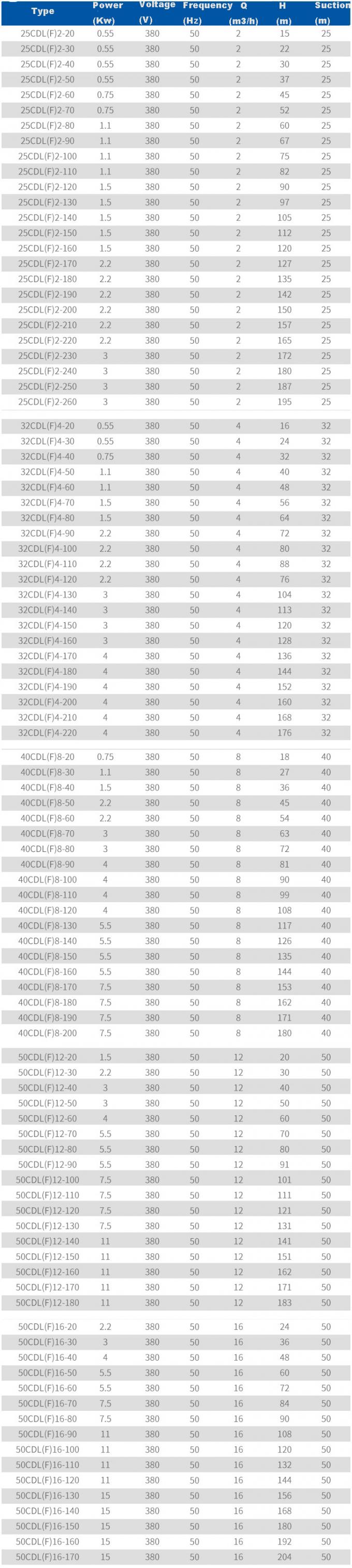

Technical data:
Contact Person: Sarah
Tel: 008613676018543
