Product Details:
Payment & Shipping Terms:
|
| Product Name: | Self Priming Water Transfer Pump | Type: | Centrifugal Pump |
|---|---|---|---|
| Material: | Stainless Steel 304/316/316L | Motor: | Common Motor Or Ex-proof Motor |
| Feature: | Self Priming | Power: | Motor / Diesel Engine |
| High Light: | self priming centrifugal pump,self priming suction pump |
||
Product description

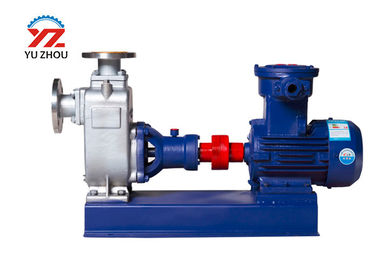

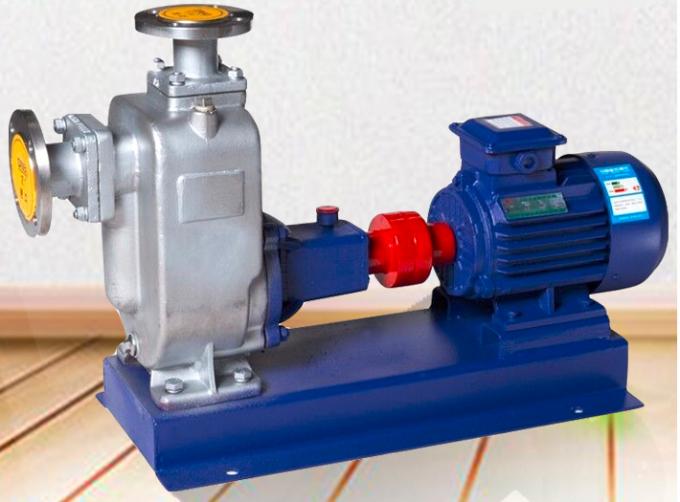

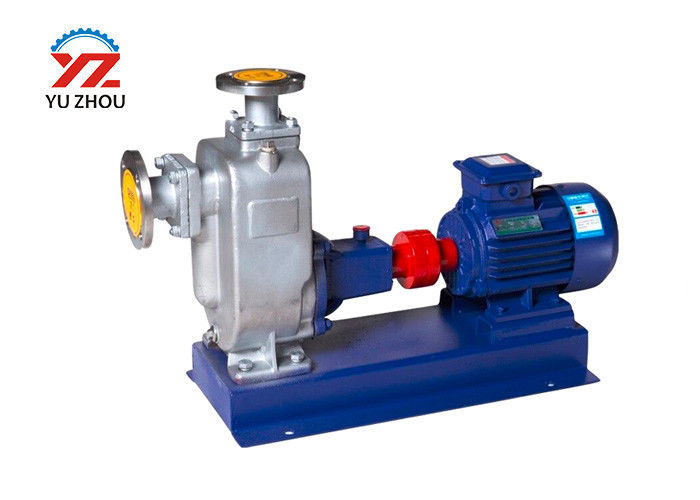

ZX series self priming centrifugal pump is design under the basic of absorb international advanced technology.
This pump is advanced of simple structure, convenient operation and maintenance, high efficiency, long life. So excellent self-priming performance.that no need foot valve in the pipeline. It just needs to have amount of liquid in pump for self-priming before starting pump. So it simplify pipeline system and improves working condition.
Application
1. Suitable for environment protection,construction,fire fighting,chemical pharmacy, printing, dyeing, brewage,power plant,electroplate,paper making,washing for mining and cooling for equipment.
2. Application as sprayer equiped with beam nozzle that turning water into little drop irrigation for farm, garden,etc.
3. It is suitable for clear water,sea water,acid or alkali chemical medium and slurry (viscosity≤100 centipois, consisitency of solid can not exceed 30% of total medium).
4. It is the ideal machine to delivery slurry to press filters .
Technology Parameters:
| No | Type | Caliber (mm) | Flow (m3/h) | Head (m) | Power (kw) | Speed (r/min) | Self-Priming height (m) |
| 1 | 25ZX3.2-20 | 25 | 3.2 | 20 | 1.1 | 2900 | 6.5 |
| 2 | 25ZX3.2-32 | 25 | 3.2 | 32 | 1.5 | 2900 | 6.5 |
| 3 | 32ZX3.2-20 | 32 | 3.2 | 20 | 1.1 | 2900 | 6.5 |
| 4 | 32ZX3.2-32 | 32 | 3.2 | 32 | 1.5 | 2900 | 6.5 |
| 5 | 32ZX3.2-50 | 32 | 3.2 | 50 | 3 | 2900 | 6.5 |
| 6 | 40ZX6.3-20 | 40 | 6.3 | 20 | 1.5 | 2900 | 6.5 |
| 7 | 40ZX6.3-32 | 40 | 6.3 | 32 | 2.2 | 2900 | 6.5 |
| 8 | 40ZX10-40 | 40 | 10 | 40 | 4 | 2900 | 6.5 |
| 9 | 40ZX6.3-50 | 40 | 6.3 | 50 | 4 | 2900 | 6.5 |
| 10 | 50ZX15-12 | 50 | 15 | 12 | 1.5 | 2900 | 6.5 |
| 11 | 50ZX18-20 | 50 | 18 | 20 | 2.2 | 2900 | 6.5 |
| 12 | 50ZX12.5-32 | 50 | 12.5 | 32 | 3 | 2900 | 6.5 |
| 13 | 50ZX12.5-40 | 50 | 12.5 | 40 | 4 | 2900 | 6.5 |
| 14 | 50ZX12.5-50 | 50 | 12.5 | 50 | 5.5 | 2900 | 6.5 |
| 15 | 50ZX20-30 | 50 | 20 | 30 | 4 | 2900 | 6.5 |
| 16 | 50ZX14-35 | 50 | 14 | 35 | 4 | 2900 | 6.5 |
| 17 | 50ZX10-40 | 50 | 10 | 40 | 4 | 2900 | 6.5 |
| 18 | 50ZX15-60 | 50 | 15 | 60 | 7.5 | 2900 | 6.5 |
| 19 | 50ZX20-75 | 50 | 20 | 75 | 11 | 2900 | 6.5 |
| 20 | 65ZX30-15 | 65 | 30 | 15 | 3 | 2900 | 6.5 |
| 21 | 65ZX25-32 | 65 | 25 | 32 | 5.5 | 2900 | 6 |
| 22 | 65ZX25-50 | 65 | 25 | 50 | 7.5 | 2900 | 6 |
| 23 | 65ZX25-70 | 65 | 25 | 70 | 15 | 2900 | 6 |
| 24 | 80ZX35-13 | 80 | 35 | 13 | 3 | 2900 | 6 |
| 25 | 80ZX43-17 | 80 | 43 | 17 | 4 | 2900 | 6 |
| 26 | 80ZX40-22 | 80 | 40 | 22 | 5.5 | 2900 | 6 |
| No. | Type | Caliber (mm) | Flow (m3/h) | Head (m) | Power (kw) | Speed (r/min) | Self-Priming height (m) |
| 27 | 80ZX50-20 | 80 | 50 | 20 | 5.5 | 2900 | 6 |
| 28 | 80ZX50-25 | 80 | 50 | 25 | 7.5 | 2900 | 6 |
| 29 | 80ZX50-32 | 80 | 50 | 32 | 7.5 | 2900 | 6 |
| 30 | 80ZX50-40 | 80 | 50 | 40 | 11 | 2900 | 6 |
| 31 | 80ZX60-55 | 80 | 60 | 55 | 18.5 | 2900 | 6 |
| 32 | 80ZX60-70 | 80 | 60 | 70 | 22 | 2900 | 6 |
| 33 | 100ZX80-20 | 100 | 80 | 20 | 11 | 2900 | 6 |
| 34 | 100ZX100-20 | 100 | 100 | 20 | 11 | 2900 | 6 |
| 35 | 100ZX100-32 | 100 | 100 | 32 | 15 | 2900 | 6 |
| 36 | 100ZX100-40 | 100 | 100 | 40 | 18.5 | 2900 | 6 |
| 37 | 100ZX100-50 | 100 | 100 | 50 | 22 | 2900 | 6 |
| 38 | 100ZX100-65 | 100 | 100 | 65 | 30 | 2900 | 6 |
| 39 | 100ZX70-75 | 100 | 70 | 75 | 30 | 2900 | 6 |
| 40 | 150ZX180-28 | 150 | 180 | 28 | 30 | 2900 | 6 |
| 41 | 150ZX170-55 | 150 | 170 | 55 | 45 | 2900 | 5 |
| 42 | 150ZX170-65 | 150 | 170 | 65 | 55 | 2900 | 5 |
| 43 | 150ZX160-80 | 150 | 160 | 80 | 55 | 2900 | 5 |
| 44 | 200ZX400-32 | 200 | 400 | 32 | 55 | 1450 | 5 |
| 45 | 200ZX280-63 | 200 | 280 | 63 | 90 | 1450 | 5 |
| 46 | 200ZX350-65 | 200 | 350 | 65 | 110 | 1450 | 5 |
| 47 | 250ZX550-32 | 250 | 550 | 32 | 75 | 1450 | 5 |
| 48 | 250ZX400-50 | 250 | 400 | 50 | 90 | 1450 | 5 |
| 49 | 250ZX450-55 | 250 | 450 | 55 | 110 | 1450 | 5 |
| 50 | 300ZX600-32 | 300 | 600 | 32 | 90 | 1450 | 5 |
| 51 | 300ZX500-50 | 300 | 500 | 50 | 110 | 1450 | 5 |
| 52 | 300ZX550-55 | 300 | 550 | 55 | 132 | 1450 | 5 |
