Horizontal Vertical Centrifugal Water Pump ISW ISG Electric Motor Driven

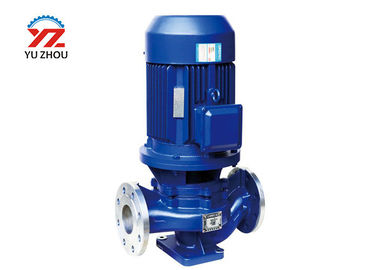

Large Image : Horizontal Vertical Centrifugal Water Pump ISW ISG Electric Motor Driven

Product Details:

Place of Origin:	China
Brand Name:	Yuzhou
Certification:	ISO/SGS/CE
Model Number:	ISW

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Plywood case package
Delivery Time:	3-7 working days
Payment Terms:	T/T, Western Union
Supply Ability:	500 sets/month

Contact Now

Detailed Product Description

Product Name:	Centrifugal Water Pump	Material:	Stainless Steel/cast Iron
Warranty:	One Year	Application:	Water /oil
Connection:	Flanges	Structure:	Vertical /horizontal
High Light:	fire fighting water pump , centrifugal booster pump

ISW ISG Horizontal Vertical High Efficiency Centrifugal Water Pump Electric Motor Driven

Application:

1, ISW ISG Horizontal Vertical High Efficiency Centrifugal Water Pump Electric Motor Driven is used for conveying clean water and other liquids which physical and chemical properties is similar to clean water. It is suitable for water supply and drainage of Factory and city, high-rise building’s water supply, garden irrigation, fire boosting pump. Temperature ≤ 80 ° C

2, ISWB is for transporting oil or Flammable, explosive liquids such as petrol, diesel, kerosene and other petroleum products. Temperature : -20 ° C -120 ° C

3, ISWR is widely used as hot water circulation pump for boiler and urban heating system. Temperature ≤ 120 ° C

4, ISWH chemical pump is for transporting liquids, without solid particles, which corrosive and viscosity is similar to water. Pump is most used in petroleum production, chemical factory, power station, paper making, food, pharmaceutical area .Temperature : -20 ° C - 120 ° C.

Technical data

Model	Capacity (m3/h)	Lift head (m)	Speed (r/min)	Motor (KW)	Inlet&Outlet Diameter (mm)
80-350A	31 44.5 58	138.4 142 134.8	2900	45	80
80-350B	29 41 53.6	131.4 135 127.8	2900	37	80
80-100(I)	70 100 130	13.6 12.5 11	2900	5.5	80
80-100(I)A	62.6 89 116	11 10 8.8	2900	4	80
80-125(I)	70 100 130	23.5 20 14	2900	11	80
80-125(I)A	62.6 89 116	68 74 65	2900	7.5	80
80-160(I)	70 100 130	36.5 32 24	2900	15	80
80-160(I)A	65.4 93.5 121.6	32 28 21	2900	11	80
80-160(I)B	60.6 86.6 112.5	72 24 18	2900	7.5	80
80-200(I)	70 100 130	54 50 42	2900	22	80
80-200(I)A	65.5 93.5 121.6	47.5 44 37	2900	18.5	80
80-200(I)B	61 87 113	41 38 32	2900	15	80
80-250(I)	70 100 130	87 80 68	2900	37	80
80-250(I)A	65.4 93.5 121.6	76 70 59.5	2900	30	80
80-250(I)B	61 87 113	65 60 51	2900	22	80
80-315(I)	70 100 130	132 125 114	2900	75	80
80-315(I)A	66.5 95 123.6	55 66 67	2900	55	80
80-315(I)B	63 90 117	106.6 101 93	2900	45	80
80-315(I)C	58 82 107	90 85 76	2900	37	80
100-100	70 100 130	13.6 12.5 11	2900	5.5	100
100-100A	62.6 89 116	11 10 8.8	2900	4	100
100-125	70 100 130	23.5 20 14	2900	11	100
100-125A	62.6 89 116	19 16 11	2900	7.5	100
100-160	70 100 130	36.5 32 24	2900	15	100
100-160A	65.4 93.5 121.6	32 28 21	2900	11	100
100-160B	60.6 86.6 112.5	27 24 18	2900	7.5	100
100-200	70 100 130	54 50 42	2900	22	100
100-200A	65.4 93.5 121.6	47.5 44 37	2900	18.5	100
100-200B	61 87 113	41 38 32	2900	15	100
100-250	70 100 130	87 80 68	2900	37	100
100-250A	65.4 93.5 121.6	76 70 59.5	2900	30	100
100-250B	61 87 113	65 60 51	2900	22	100
100-315	70 100 130	132 125 114	2900	75	100
100-315A	66.5 95 123.6	119 113 103	2900	55	100
100-315B	63 90 117	106.6 101 92	2900	45	100
100-315C	58 82 107	90 85 76	2900	37	100
100-100(I)	96 160 192	24 20 14	2900	11	100
100-125(I)	96 160 192	24 20 14	2900	15	100
100-125(I)A	84 140 168	20 17 12	2900	11	100
100-160(I)	96 160 192	36 32 27	2900	22	100
100-160(I)A	84 140 168	32 28 23.5	2900	18.5	100
100-200(I)	96 160 192	53 50 45	2900	37	100
