High Viscosity Gear Oil Transfer Pump For Paint Glue Toothpaste Oil Transfer

China High Viscosity Gear Oil Transfer Pump For Paint Glue Toothpaste Oil Transfer supplier
High Viscosity Gear Oil Transfer Pump For Paint Glue Toothpaste Oil Transfer supplier High Viscosity Gear Oil Transfer Pump For Paint Glue Toothpaste Oil Transfer supplier High Viscosity Gear Oil Transfer Pump For Paint Glue Toothpaste Oil Transfer supplier

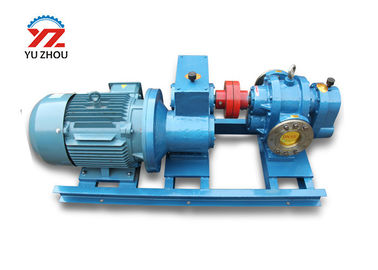

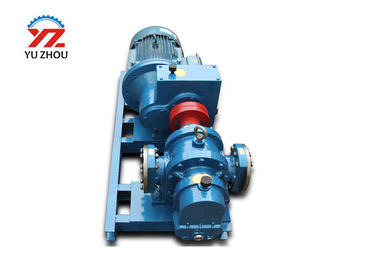

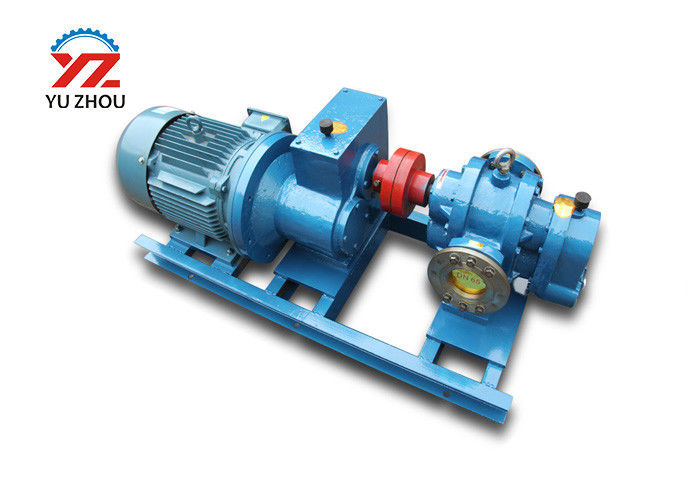

Large Image :  High Viscosity Gear Oil Transfer Pump For Paint Glue Toothpaste Oil Transfer

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: LC/LCW

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: plywood case package
Delivery Time: 2-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Product Name: Gear Oil Transfer Pump Model: LC/LCW
Drive Type: Belt / Gear Reducer Application: Oil,paint,glue,sugar
Structure: High Viscosity Warranty: 12 Month
High Light:

gear lube transfer pump

,

rotary gear oil pump

LC/LCW series high viscosity roots oil pump for transfer paint glue toothpaste oil



The LC Roots pump is a cam double-rotor pump. The product uses two synchronously moving rotors. The rotor is driven by an external synchronous gearbox, and the rotor is rotated in the opposite direction by the drive shaft. There is no friction contact in the volume and the service life is very long. Compared with the NYP internal gear pump, the LC Roots pump has a long service life and the price is equivalent. It is mainly used to transport high viscosity fluids (molasses, etc.).

Product name High viscosity LC type easy to use profession manufacturer delivery roots oil pump
Import 50mm
Export 50mm
Rotation speed 400r/min
Temperature <140℃
Material Cast iron or stainless steel
Flow rate 18m3/h
Connection method Reducer or pulley
Explosion proof motor Optional
Color According to customer demand
Warranty period 1 year


Technical data:

Model

Flow

m3/h

Working

pressure

mpa

Calibre for

Inlet&outlet

mm

Fitting motor

Power

KW

Speed

r/min

Medium temperature

≤°C

Applied range

Reduction device

type

Triangle belt code name
LC-10/0.6 10 0.6 40 ZD14 A1778 3 400 140

Diesel,

engine oil,

Glycerine,

petroleum,

toothpaste,

edibles,

viscous oil,etc

LC-18/0.6 18 0.6 50 ZD14 A1778 5.5 400 140
4   140
LC-38/0.6 38 0.6 65 ZD14 B2350 7.5 400 140
LCX-50/0.6 50 0.6 100 ZL200   15 445 140
LC-80/0.6 80 0.6 200 ZL200   30 209 140
LCT-100/0.6 100 0.6 200 ZL23.1   37 254 140
LCT-10/0.6 10 0.6 40 ZD14 B2350 3 400 140

Gasoline,

flux oil,

Kerosene,

etc

LCT-18/0.6 18 0.6 50 ZD14 A1778 5.5 400 140
4   140
LCT-38/0.6 38 0.6 65 ZD14 A1778 7.5 400 140
LCT-50/0.6 50 0.6 100 ZL200   18.5 445 140
LCT-80/0.6 80 0.6 200 ZL23.1   30 209 140
LCT-100/0.6 100 0.6 200 ZL23.1   37 254 140
LCW-10/0.6 10 0.6 40 ZD14 A1778 3 400 140

Asphalt,

cold oil,

viscous oil etc

LCW-18/0.6 18 0.6 50 ZD14 A1778 5.5 400 140
4   140
LCW-38/0.6 38 0.6 65 ZD14 B2350 7.5 400
LCW-50/0.6 50 0.6 100 ZL200   18.5 445 140
LCW-80/0.60 80 0.6 200 ZL23.1   30 209 140
LCW-100/0.6 100 0.6 200 ZL23.1   37 254 140
