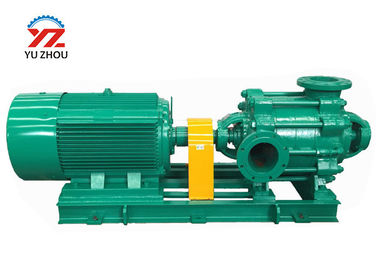

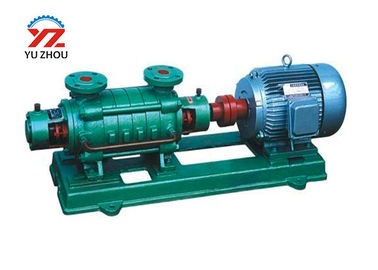

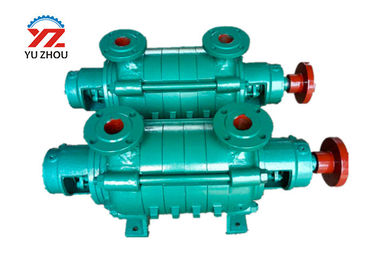

High Pressure Multistage Boiler Water Circulating Pump Electric Motor GC Series

China High Pressure Multistage Boiler Water Circulating Pump Electric Motor GC Series supplier
High Pressure Multistage Boiler Water Circulating Pump Electric Motor GC Series supplier High Pressure Multistage Boiler Water Circulating Pump Electric Motor GC Series supplier High Pressure Multistage Boiler Water Circulating Pump Electric Motor GC Series supplier High Pressure Multistage Boiler Water Circulating Pump Electric Motor GC Series supplier

Large Image :  High Pressure Multistage Boiler Water Circulating Pump Electric Motor GC Series

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO
Model Number: GC

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood case package
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Product Name: Multistage Centrifugal Pump Structure: Centrifugal
Pressure: High Pressure Application: Boiler
Power: Electric Motor Drive Warranty: One Year
High Light:

multistage centrifugal water pump

,

boiler water circulating pump

GC series High Pressure Multistage Boiler Water Circulation Pumps Multistage Centrifugal Pump​

Brief Introduction



We are professional manufacturer for Horizontal boiler feed pump/Horizontal boiler feed water pump, our Horizontal boiler feed pump/Horizontal boiler feed water pump is with high and stable quality, and we have made many water pump solutions for many customers.



1. Multistage centrifugal

2. Inlet and outlet are both at horizontal

3. Small vibration



GC series Horizontal Multistage Centrifugal Pump Features:

GC Multi-stage Centrifugal Water Pump is a new product which is developed according to our national public security's regulation for the field of high building and fire fighting. Its all series consists of five varieties 40 specifications for conveying water or 80 degrees below the physical and chemical properties of similar liquid water.



Usage:

1. Mainly used in high buildings life water supply, fire fighting system, automatic spraying water under the water curtain, long distance water transportation, water circulation in production process, supporting the use of all kinds of equipment and various production process water, etc

2. It is used in city construction, factories, mines, the water is especially suitable for hotels, restaurants, entertainment refrigeration and air conditioning supply water.



Packaging & Delivery

Packaging Detail: Carton or polywood case.

Delivery Detail: 2 days and above according to clients requirements

Specifications

Multistage pump is a horizontal water pump which is widely used in mines, power stations, chemical plants, water supply system.

Multistage pump is centrifugal pump with big flow and high head, this pump is widely used in mines, power station, etc. Heavy duty design. Power may be 380V, or 6000V.



Working Principle: Centrifugal, Multi-stage
Main applications: Water
Driver: Electric motor
Power Specs: 380/415 V 3phase; 50Hz/60Hz etc.
Max. Permissible fluid temperature: 80° C
Type of connection: Flange
Installation position: Horizontal
Casing/Inner parts material: Cast iron /Cast iron
Shaft seal type: Mechanical seal; Packing gland
Free passage: 0.1 mm
Maximum gravity: 1.03
Maximum drive rating: 180kW (242HP)
Maximum caliber: 6 inch (150mm)
Maximum dischrage head: 270m
Flow rate range: 18-155 m³ /h (30-2580L/m)

Technical data:

Model Flow Head Speed Efficiency Power( kw ) Model
(m3/h) (m) ( r/min ) ( %) Shaft Motor
1.5GC-5×2 6 46 2950 38 2 3 1.5GC-5×2
1.5GC-5×3 6 69 2950 38 3 4 1.5GC-5×3
1.5GC-5×4 6 92 2950 38 4 5.5 1.5GC-5×4
1.5GC-5×5 6 115 2950 38 5 5.5 1.5GC-5×5
1.5GC-5×6 6 138 2950 38 6 7.5 1.5GC-5×6
1.5GC-5×7 6 161 2950 38 7 7.5 1.5GC-5×7
1.5GC-5×8 6 184 2950 38 8 11 1.5GC-5×8
1.5GC-5×9 6 207 2950 38 9 11 1.5GC-5×9
2GC-5×2 10 64 2950 38 10 7.5 2GC-5×2
2GC-5×3 10 96 2950 38 11 11 2GC-5×3
2GC-5×4 10 128 2950 38 12 15 2GC-5×4
2GC-5×5 10 160 2950 38 13 15 2GC-5×5
2GC-5×6 10 192 2950 38 14 18.5 2GC-5×6
2GC-5×7 10 224 2950 38 15 22 2GC-5×7
2GC-5×8 10 256 2950 38 16 30 2GC-5×8
2GC-5×9 10 288 2950 38 17 30 2GC-5×9


Remarks:
1.The specifications is based on 380V/50Hz, for any other standard, please contact us.
2.The parameters is only of part of whole. Please contact us for full specifications.
