Product Details:
Payment & Shipping Terms:
|
| Product Name: | Screw Pump | Model: | 3GB |
|---|---|---|---|
| Feature: | High Performance | Flow Rate: | 20-200m3/h |
| Voltage: | 220V/380V/400v-480v | Application: | Bitumen/crude Oil/fuel Oil |
| High Light: | positive displacement pump,3 screw pump |
||

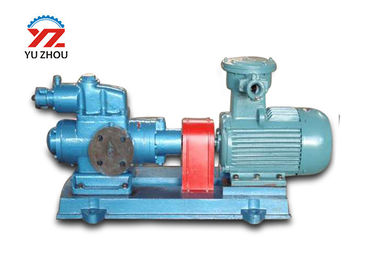

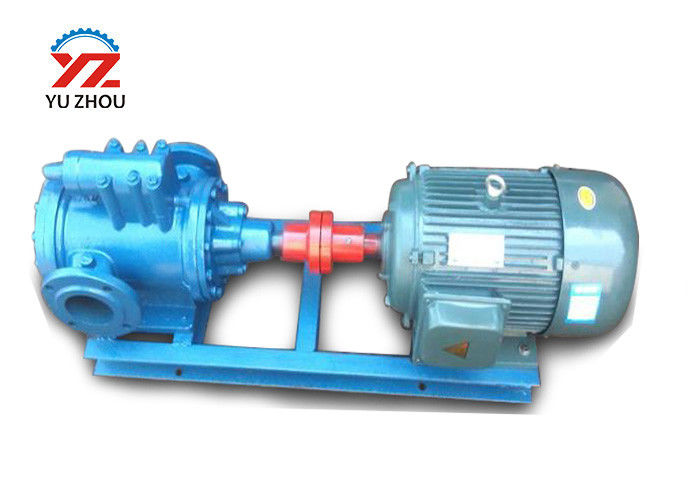

3GB Series 3 Screw Asphalt/bitumen/oil fuel transfer pump /crude oil/surface transfer pump
Brief introduction
Three Screw Pump Feature
(1) Medium is delivered continuously without agitation and pulsation.
(2) Small vibration and low noise.
(3) High pressure and high efficiency.
(4) Simple structure and easy assemble
(5) Small volume and light weight
(6) Wearable and long life
1.Bitumen Transfer Pump, Three Screw Pump, High Viscosity Asphalt Pump , can transmit heavy oil without particle, non-corrosive oil
2. The viscosity can be 3.0~760 mm2/s (1.2-100 °E). High viscosity medium can be pumped after overheating.
3. It can be used as rubricating pump, hydraulic pump, boost pump, petrol pump and dispensing pump.
4. Pump fuel oil, rubricate oil, hydraulic oil, crude oil, heavy oil, asphalt, bitumen, rubber, resin such various types of lubrication oil-type liquid in industries of petroleum, steel making, chemical fiber, food, metallurgy, road construction, electrify, mining, shipbuilding, glass, rubber.
Performance data
| Model | Capacity (m3/min) | Pressure | Speed | KW | Suction head | ||
| m3/h | L/min | MPa | r/min | Shaft power | motor power | m | |
| 45× 3-36 | 2.8 | 46 | 0.6 | 950 | 0.8 | 1.1 | 5 |
| 4.2 | 70 | 0.6 | 1450 | 1 | 1.5 | 5 | |
| 45× 2-46 | 4.2 | 70 | 0.6 | 950 | 1 | 1.5 | 5 |
| 14 | 233 | 4 | 1450 | 4.3 | 5.5 | 5 | |
| 62× 2-43 | 8.58 | 143.4 | 0.6 | 950 | 2.06 | 3 | 5 |
| 13.1 | 218.9 | 0.6 | 1450 | 3.15 | 4 | ||
| 62× 2-46 | 9.8 | 163 | 0.8 | 950 | 2.9 | 4 | 5 |
| 25 | 417 | 1 | 1450 | 8.5 | 11 | ||
| 80× 2-45 | 23.1 | 386.3 | 1 | 950 | 8.6 | 11 | 5 |
| 35.7 | 594.5 | 1 | 1450 | 13.1 | 15 | ||
| 80× 2-51 | 26.9 | 448.3 | 1 | 950 | 10.5 | 15 | 5 |
| 41 | 684.1 | 1 | 1450 | 16 | 18.5 | ||
| 90× 2-36 | 24.2 | 403.5 | 0.6 | 950 | 5.52 | 7.5 | 5.5 |
| 36.1 | 602.4 | 1 | 1450 | 13 | 15 | ||
| 90× 2-36 | 27.5 | 457.6 | 1 | 950 | 10.2 | 15 | 5.5 |
| 41.9 | 698.5 | 1 | 1450 | 15.5 | 18.5 | ||
| 90× 2-46 | 34 | 566.7 | 0.8 | 950 | 9.7 | 11 | 5.5 |
| 51.4 | 856.1 | 1 | 1450 | 18.6 | 22 | ||
| 100× 2-46 | 72.7 | 1212 | 0.6 | 950 | 16.5 | 18.5 | 5.5 |
| 71.2 | 1187 | 1 | 1450 | 25.5 | 30 | ||
| 100× 2-51 | 55.7 | 928.6 | 1 | 950 | 20.8 | 30 | 5.5 |
| 85 | 1417.2 | 1 | 1450 | 31.8 | 37 | ||
| 110× 2-46 | 58.9 | 951.7 | 1 | 950 | 21.8 | 30 | 5.5 |
| 94.6 | 1577 | 1 | 1450 | 33.9 | 45 | ||
| 120× 2-42 | 65.4 | 1090 | 1 | 950 | 24.5 | 30 | 5.5 |
| 105 | 1760 | 1 | 1450 | 38.2 | 45 | ||
| 120× 2-46 | 79.6 | 1327 | 0.6 | 950 | 17.8 | 22 | 5.5 |
| 123 | 2059 | 1 | 1450 | 44.1 | 55 | ||
| 150× 2-46 | 154 | 2582 | 1 | 950 | 54.5 | 75 | 5.5 |
| 236.5 | 3942.2 | 1 | 1450 | 82.2 | 90 | ||
