Product Details:
Payment & Shipping Terms:
|
| Product Name: | Self Priming Water Transfer Pump | Pressure: | High Pressure |
|---|---|---|---|
| Material: | Cast Iron | Application: | Water |
| Feature: | High Efficiency | Colour: | Customized |
| High Light: | centrifugal water pump,self priming suction pump |
||
Product introduction:

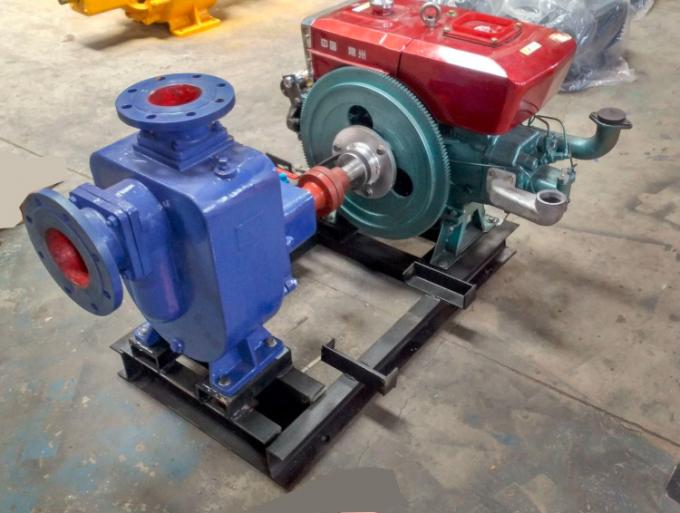

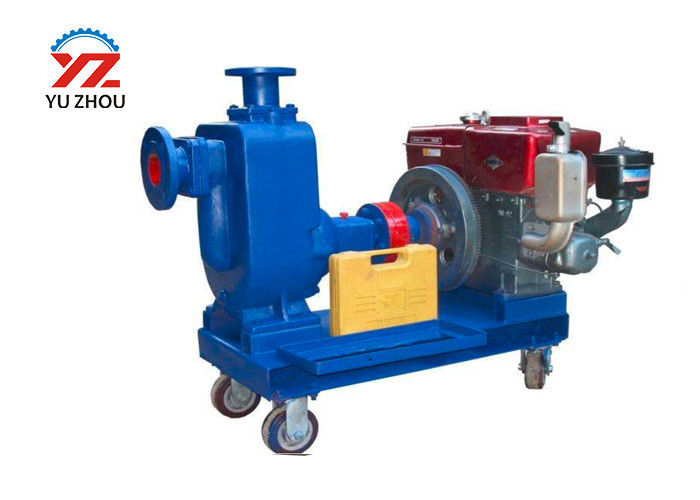

1. ZX heavy duty centrifugal self priming irrigation pump diesel engine driven water pump works for water or medium similar to water that viscosity below 5°E and temperature below 80°C(176°F).
2. It is compact, easy to operate, running stable, easy to maintain, efficient, with long service life and large suction capacity.
3. The water pump with self priming ability could work without bottom valve in channel but with the quantitative lead liquid that kept in pump before operation.
4. Pump may equipped with diesel engine for outdoor and wild water supply and drainage.
5. Widely used in city environmental protection , construction, fire fighting, chemical industry, pharmacy, dyes, dyeing, brewing, electric power, electric plating, paper-making, industrial and mineral rinse, equipment cooling and so on.
Product details:
| Working Principle: | Centrifugal, Self-priming |
| Main applications: | Water |
| Driver: | Electric motor, Diesel engine |
| Power Specs: | 110/220/230V 1phase; 220/380/400/415V 3phase; 50hz/60hz |
| Max.permissible fluid temperature: | 80°C(176°F) |
| Type of connection: | Flange |
| Installation position: | Horizontal |
| Casing parts material: | Cast iron, Stainless Steel |
| Shaft seal type: | Mechanical seal |
| Free passage: | 0mm |
| Maximum drive rating: | 132KW(180HP) |
| Maximum caliber: | 300mm(12inch) |
| Maximum head: | 80m(262.4ft) |
| Maximum suction: | 6.5m(21.3ft) |
| Flow rate range: | 3.2-600m3/h(14.1-2640US.GPM) |
Technology Parameters:
| No | Type | Caliber (mm) | Flow (m3/h) | Head (m) | Power (kw) | Speed (r/min) | Self-Priming height (m) |
| 1 | 25ZX3.2-20 | 25 | 3.2 | 20 | 1.1 | 2900 | 6.5 |
| 2 | 25ZX3.2-32 | 25 | 3.2 | 32 | 1.5 | 2900 | 6.5 |
| 3 | 32ZX3.2-20 | 32 | 3.2 | 20 | 1.1 | 2900 | 6.5 |
| 4 | 32ZX3.2-32 | 32 | 3.2 | 32 | 1.5 | 2900 | 6.5 |
| 5 | 32ZX3.2-50 | 32 | 3.2 | 50 | 3 | 2900 | 6.5 |
| 6 | 40ZX6.3-20 | 40 | 6.3 | 20 | 1.5 | 2900 | 6.5 |
| 7 | 40ZX6.3-32 | 40 | 6.3 | 32 | 2.2 | 2900 | 6.5 |
| 8 | 40ZX10-40 | 40 | 10 | 40 | 4 | 2900 | 6.5 |
| 9 | 40ZX6.3-50 | 40 | 6.3 | 50 | 4 | 2900 | 6.5 |
| 10 | 50ZX15-12 | 50 | 15 | 12 | 1.5 | 2900 | 6.5 |
| 11 | 50ZX18-20 | 50 | 18 | 20 | 2.2 | 2900 | 6.5 |
| 12 | 50ZX12.5-32 | 50 | 12.5 | 32 | 3 | 2900 | 6.5 |
| 13 | 50ZX12.5-40 | 50 | 12.5 | 40 | 4 | 2900 | 6.5 |
| 14 | 50ZX12.5-50 | 50 | 12.5 | 50 | 5.5 | 2900 | 6.5 |
| 15 | 50ZX20-30 | 50 | 20 | 30 | 4 | 2900 | 6.5 |
| 16 | 50ZX14-35 | 50 | 14 | 35 | 4 | 2900 | 6.5 |
| 17 | 50ZX10-40 | 50 | 10 | 40 | 4 | 2900 | 6.5 |
| 18 | 50ZX15-60 | 50 | 15 | 60 | 7.5 | 2900 | 6.5 |
| 19 | 50ZX20-75 | 50 | 20 | 75 | 11 | 2900 | 6.5 |
| 20 | 65ZX30-15 | 65 | 30 | 15 | 3 | 2900 | 6.5 |
| 21 | 65ZX25-32 | 65 | 25 | 32 | 5.5 | 2900 | 6 |
| 22 | 65ZX25-50 | 65 | 25 | 50 | 7.5 | 2900 | 6 |
| 23 | 65ZX25-70 | 65 | 25 | 70 | 15 | 2900 | 6 |
| 24 | 80ZX35-13 | 80 | 35 | 13 | 3 | 2900 | 6 |
| 25 | 80ZX43-17 | 80 | 43 | 17 | 4 | 2900 | 6 |
| 26 | 80ZX40-22 | 80 | 40 | 22 | 5.5 | 2900 | 6 |
| No. | Type | Caliber (mm) | Flow (m3/h) | Head (m) | Power (kw) | Speed (r/min) | Self-Priming height (m) |
| 27 | 80ZX50-20 | 80 | 50 | 20 | 5.5 | 2900 | 6 |
| 28 | 80ZX50-25 | 80 | 50 | 25 | 7.5 | 2900 | 6 |
| 29 | 80ZX50-32 | 80 | 50 | 32 | 7.5 | 2900 | 6 |
| 30 | 80ZX50-40 | 80 | 50 | 40 | 11 | 2900 | 6 |
| 31 | 80ZX60-55 | 80 | 60 | 55 | 18.5 | 2900 | 6 |
| 32 | 80ZX60-70 | 80 | 60 | 70 | 22 | 2900 | 6 |
| 33 | 100ZX80-20 | 100 | 80 | 20 | 11 | 2900 | 6 |
| 34 | 100ZX100-20 | 100 | 100 | 20 | 11 | 2900 | 6 |
| 35 | 100ZX100-32 | 100 | 100 | 32 | 15 | 2900 | 6 |
| 36 | 100ZX100-40 | 100 | 100 | 40 | 18.5 | 2900 | 6 |
| 37 | 100ZX100-50 | 100 | 100 | 50 | 22 | 2900 | 6 |
| 38 | 100ZX100-65 | 100 | 100 | 65 | 30 | 2900 | 6 |
| 39 | 100ZX70-75 | 100 | 70 | 75 | 30 | 2900 | 6 |
| 40 | 150ZX180-28 | 150 | 180 | 28 | 30 | 2900 | 6 |
| 41 | 150ZX170-55 | 150 | 170 | 55 | 45 | 2900 | 5 |
| 42 | 150ZX170-65 | 150 | 170 | 65 | 55 | 2900 | 5 |
| 43 | 150ZX160-80 | 150 | 160 | 80 | 55 | 2900 | 5 |
| 44 | 200ZX400-32 | 200 | 400 | 32 | 55 | 1450 | 5 |
| 45 | 200ZX280-63 | 200 | 280 | 63 | 90 | 1450 | 5 |
| 46 | 200ZX350-65 | 200 | 350 | 65 | 110 | 1450 | 5 |
| 47 | 250ZX550-32 | 250 | 550 | 32 | 75 | 1450 | 5 |
| 48 | 250ZX400-50 | 250 | 400 | 50 | 90 | 1450 | 5 |
| 49 | 250ZX450-55 | 250 | 450 | 55 | 110 | 1450 | 5 |
| 50 | 300ZX600-32 | 300 | 600 | 32 | 90 | 1450 | 5 |
| 51 | 300ZX500-50 | 300 | 500 | 50 | 110 | 1450 | 5 |
| 52 | 300ZX550-55 | 300 | 550 | 55 | 132 | 1450 | 5 |
