Product Details:
Payment & Shipping Terms:
|
| Product Name: | LPG Transfer Pump | Place Of Origin: | China |
|---|---|---|---|
| Material: | Cast Iron Or Stainless Steel | Certificate: | ISO9001:2000 |
| Temperature: | -40-80 Degrees | Motor Turning Speed: | 600-900 Rpm |
| Voltage: | 48V/110V/ 220V/380V | Connection: | Belt |
| High Light: | lpg petrol pump,lpg gas pump |
||

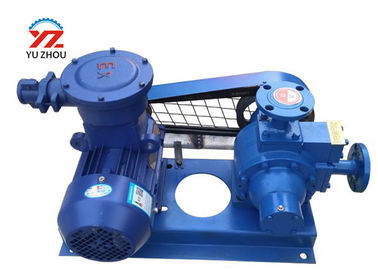

YQB series LPG transfer pump 1inch,2inch LPG gas cylinder filling machine
Descreption:
Lpg transfer pump with explosion motor 220v single phrase for nigeria market, mainly used for liquefied petroleum gas, propane and butane, are also suitable for filling or transporting volatile liquids and petroleum products of similar properties.
Lpg transfer pump YQB series used for transfer the LPG from LPG cylinder to cylinder, with 3 LPG filling nozzle, can transfer the two LPG cylinder at the same time.
Advantages:
1. Innovative cam desigb virtually eliminates cavitation
2. New materials utilized in cam and blades and heavy duty bearings extend pump life
3. Single mechanical seal, very easy seal replacement and maintenance
4. Large diameter non-metallic pins are suitable for higher pump speeds
Technical details:
| Model | Speed n | Flow Q |
Pressure difference ΔP |
Working pressure P |
Power N |
Inlet size | Outlet size |
Temperature ℃ |
| YQB1-5 | 600r.P.m | 1 m3/h | 0.5MPa | 2.0MPa | 1.5KW | 1'' | 1'' | +40-40 |
| YQB2-5 | 600r.P.m | 2 m3/h | 0.5MPa | 2.0MPa | 1.5KW | 1'' | 1'' | +40-40 |
| YQB3-5 | 600r.P.m | 3 m3/h | 0.5MPa | 2.0MPa | 1.5KW | 1'' | 1'' | +40-40 |
| YQB5-5 | 780r.P.m | 5 m3/h | 0.5Mpa | 1.6Mpa | 2.2KW | 1'' | 1'' | +40-40 |
| YQB10-5 | 780r.P.m | 10m3/h | 0.5MPa | 1.6MPa | 5.5KW | 2'' | 2'' | +40-40 |
| YQB15-5 | 780r.P.m | 15m3/h | 0.5Mpa | 1.6Mpa | 5.5kw | 2'' | 2'' | +40-40 |
| YQB25-5 | 600r.P.m | 25m3/h | 0.5MPa | 1.6MPa | 11KW | 3'' | 3'' | +40-40 |
| YQB35-5 | 780r.P.m | 35m3/h | 0.5Mpa | 1.6Mpa | 11kw | 3'' | 3'' | +40-40 |
| YQB50-5 | 600r.P.m | 50 m3/h | 0.5MPa | 1.6MPa | 15KW | 4'' | 4'' | +40-40 |
| YQB60-5 | 780r.P.m | 60 m3/h | 0.5MPa | 1.6MPa | 15KW | 4'' | 4'' | +40-40 |
| YQB80-5 | 780r.P.m | 80 m3/h | 0.5MPa | 1.6MPa | 18.5KW | 4'' | 4'' | +40-40 |
How to use:
1. Connect the gas cylinder with the pump at the pump inlet and open the cylinder angle valve.
Inverted cylinder, (preferably the cylinder outlet is higher than the inverted pump) see the pressure gauge
There is no pressure. The normal pressure is about 2 kg.
2. Open the gun switch at the pump outlet, and need to drain the pump when using for the first time.
Inside the air, then turn on the empty cylinder and turn on all switches.
3. Test the car, turn the wheel by hand, check if there is any debris in the pump, and jog the power switch to test the pump to reverse direction. (there is a steering indicator on the pump)
4. Stop, the empty cans cut off the power supply and stop running, close the valves.
