Factory Use Motor Driven Centrifugal Pump , ISG Fire Fighting Water Pump

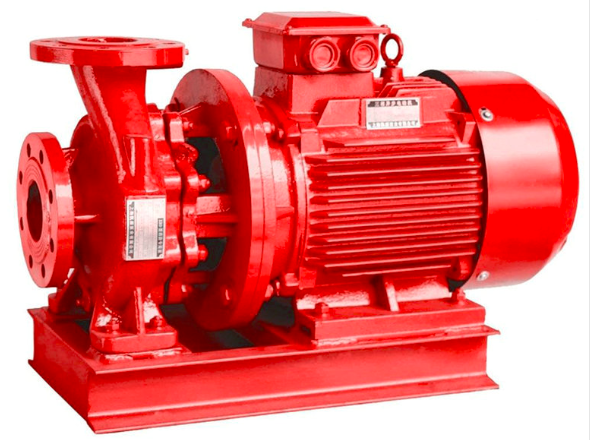

Large Image : Factory Use Motor Driven Centrifugal Pump , ISG Fire Fighting Water Pump

Product Details:

Place of Origin:	China
Brand Name:	Yuzhou
Certification:	ISO/SGS/CE
Model Number:	ISW

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Plywood case package
Delivery Time:	3-7 working days
Payment Terms:	T/T, Western Union
Supply Ability:	500 sets/month

Contact Now

Detailed Product Description

Product Name:	Centrifugal Water Pump	Material:	Stainless Steel/cast Iron
Warranty:	One Year	Application:	Clean Water
Connection:	Flanges	Structure:	Vertical /horizontal
High Light:	fire fighting water pump , motor driven centrifugal pump

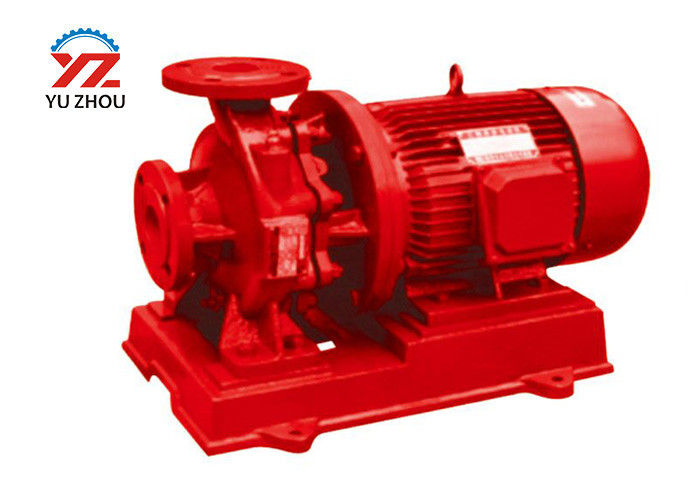

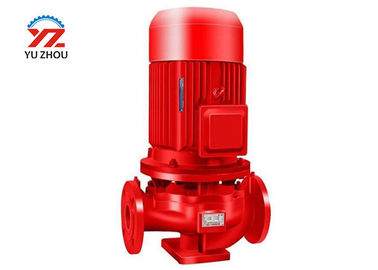

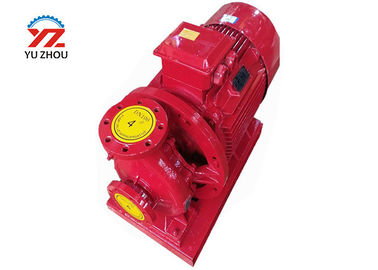

ISW ISG Electric Motor Driven Centrifugal Water Pump Fire Fighting Pump

Application:

1,ISW ISG Electric Motor Driven Centrifugal Water Pump Fire Fighting Pump is used for conveying clean water and other liquids which physical and chemical properties is similar to clean water. It is suitable for water supply and drainage of Factory and city, high-rise building’s water supply, garden irrigation, fire boosting pump. Temperature ≤ 80 ° C

2, ISWB is for transporting oil or Flammable, explosive liquids such as petrol, diesel, kerosene and other petroleum products. Temperature : -20 ° C -120 ° C

3, ISWR is widely used as hot water circulation pump for boiler and urban heating system. Temperature ≤ 120 ° C

4, ISWH chemical pump is for transporting liquids, without solid particles, which corrosive and viscosity is similar to water. Pump is most used in petroleum production, chemical factory, power station, paper making, food, pharmaceutical area .Temperature : -20 ° C - 120 ° C.

Technical data

Model	Capacity (m3/h)	Lift head (m)	Speed (r/min)	Motor (KW)	Inlet&Outlet Diameter (mm)
125-160B	83 138 166	27 24 21	2900	15	125
125-200	96 160 192	55 50 46	2900	37	125
125-200A	90 150 180	48.4 44 40.5	2900	30	125
125-200B	83 138 166	41.3 37.5 34.5	2900	22	125
125-250	96 160 192	87 80 73	2900	55	125
125-250A	90 150 180	76 70 84	2900	45	125
125-250B	83 138 166	65 60 55	2900	37	125
125-315	96 160 192	133 125 119	2900	90	125
125-315A	90 150 180	117 110 104.6	2900	75	125
125-315B	86 143 172	106.4 100 95.2	2900	75	125
125-315C	80.5 134 161	96 88 86	2900	55	125
150-125	96 160 192	22.6 24 17	2900	11	150
150-125A	90 150 180	18 16 13.6	2900	7.5	150
150-160	96 160 192	36 32 27	2900	22	150
150-160A	90 150 180	32 28 23.5	2900	18.5	150
150-160B	84 140 168	27 24 21	2900	15	150
150-200	140 200 260	13.8 12.5 10.6	1450	15	150
150-200A	125 176 232.5	11 10 8.5	1450	11	150
150-200B	84 140 168	41 38 34	2900	22	150
150-250	140 200 260	21.8 20 17	1450	18.5	150
150-250A	129 184.4 240	18.5 17 14.4	1450	15	150
150-250B	117 167 217.5	15.2 14 12	1450	11	150
150-315	140 200 260	33.8 32 28	1450	30	150
150-315A	131 187 243	29.5 28 24.5	1450	22	150
150-315B	121 173 225	25 24 21	1450	18.5	150
150-350	96 160 192	153.6 150 142.8	2900	110	150
150-350A	90 150 180	145.6 142 134.8	2900	90	150
150-350B	84 140 168	138.6 135 127.8	2900	75	150
150-400	140 200 260	53 50 44	1450	45	150
