Energy Saving Hot Oil Centrifugal Pump High Temp Resistanc Single Stage

China Energy Saving Hot Oil Centrifugal Pump High Temp Resistanc Single Stage supplier
Energy Saving Hot Oil Centrifugal Pump High Temp Resistanc Single Stage supplier Energy Saving Hot Oil Centrifugal Pump High Temp Resistanc Single Stage supplier Energy Saving Hot Oil Centrifugal Pump High Temp Resistanc Single Stage supplier Energy Saving Hot Oil Centrifugal Pump High Temp Resistanc Single Stage supplier

Large Image :  Energy Saving Hot Oil Centrifugal Pump High Temp Resistanc Single Stage

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: RY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case Package
Delivery Time: 3-7 Work Days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 500sets/month
Contact Now
Detailed Product Description
Structure: Single-stage Power: Electric Motor
Temperature: <350 Degree C Color: Customized
Motor Type: Normal Type,Explosion-proof Type Material: Cast Steel/Cast Iron/Stainless Steel/Alloy Steel Etc
High Light:

hot oil centrifugal pump

,

boiler feed water pump

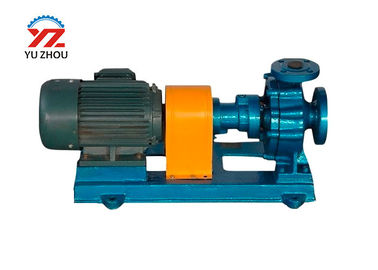

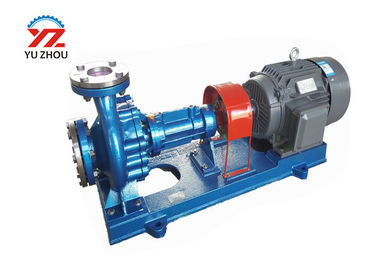

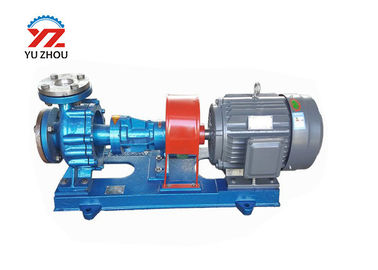

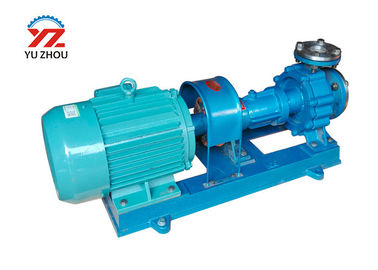

RY Series High Temperature Energy-saving Hot Oil Transfer Pump Electric Single Stage Centrifugal Hot Oil Pump



RY Series High Temperature Air Cooled Hot Oil Transfer Pump is mainly used to transport weakly corrosive high-temperature liquid without solid particles. It is an ideal circulating pump with temperature ≤350°C.



RY Series High Temperature Air Cooled Hot Oil Transfer Pump basic structure of the RY type heat transfer oil pump is a single-stage single-suction cantilever type foot support structure. The inlet of the pump is axially sucked, the outlet is centered vertically upward, and the motor is mounted on the base.


The support of the RY Series High Temperature Air Cooled Hot Oil Transfer Pump adopts the structure supported by the double-end ball bearing. The front end is lubricated with lubricating oil, the rear end is lubricated with grease, and the middle part has a guide oil tube for observing the sealing condition and recovering the heat transfer oil at any time. The self-heating heat dissipation structure changes the traditional water cooling structure, so that the structure is simple, the volume is small, the operation cost is saved, the performance is good, and the use is reliable.


RY Series High Temperature Air Cooled Hot Oil Transfer Pump , (1) combined with packing seal and mechanical seal, high temperature resistant packing for packing seal, good thermal adaptability, and mechanical seal with high mechanical strength and good wear resistance The alloy material ensures the sealing performance under high temperature conditions. (2) The third-generation PTFE (abbreviated as PTFE) is used as the lip seal to improve the sealing and corrosion resistance.



Technical details:



Model

Flow

( m³/h)

Lift

(m)

Speed

(r/min)

Shaft Power(kw)

Power

(kW)

Efficiency

(%)

20-20-100 1 10 2800 0.09 0.75 26
20-20-125 1.5 22 2800 0.22 0.75 30
25-25-160 3 27 2900 0.53 1.5 30
32-32-160 6 28 2900 0.85 1.5 50
40-25-160 10 28 2900 1.72 2.2 45
40-25-200 10 50 2900 3.30 4.0 50
50-32-160 12.5 30 2900 1.90 3.0 57
20-20-100 1 10 2800 0.09 0.75 26
20-20-125 1.5 22 2800 0.22 0.75 30
25-25-160 3 27 2900 0.53 1.5 30
32-32-160 6 28 2900 0.85 1.5 50
40-25-160 10 28 2900 1.72 2.2 45
40-25-200 10 50 2900 3.30 4.0 50
50-32-160 12.5 30 2900 1.90 3.0 57
50-32-200 12.5 50 2900 3.78 5.5 45
50-32-200 18 40 2900 3.95 5.5 50
50-32-200A 16 32 2900 3.35 4.0 42
50-32-250 12.5 80 2900 6.20 11 44
50-32-250 18 70 2900 7.6 11 45
50-32-250A 16 60 2900 6.20 7.5 42
65-50-160 20 32 2900 3.17 5.5 55

65-40-200

25

50

2900

5.87

7.5

58
65-40-200 30 48 2900 6.30 7.5 62
65-40-200A 25 35 2900 4.00 5.5 59
65-40-250 25 80 2900 10.3 15 53
65-40-250A 20 51 2900 5.67 7.5 49
65-40-315 25 125 2900 18.9 30 45
65-40-315A 22.5 100 2900 15.3 22 40
80-50-200 40 52 2900 8.85 15 64
80-50-200 50 50 2900 9.70 15 70
80-50-200 60 46 2900 11.0 15 70
80-50-200A 45 40 2900 7.80 11 63
80-50-200B 40 32 2900 6.37 7.5 55
80-50-250 50 80 2900 18.7 22 58
80-50-250 60 72 2900 19.6 22 60
80-50-250A 43 60 2900 12.80 15 55
80-50-315 50 125 2900 30.4 45 56
80-50-315A 45 100 2900 23.6 30 52
100-65-200 80 53 2900 16.50 22 70
100-65-200 100 50 2900 18.40 22 74
100-65-200A 94 44 2900 16.00 22 70
100-65-200B 87 38 2900 13.80 15 65
100-65-200C 80 32 2900 11.80 15 59
100-65-250 80 85 2900 28.90 37 64
100-65-250 100 80 2900 32.06 37 68
100-65-250A 95 72 2900 29.00 37 64
100-65-250B 90 65 2900 26.20 30 61
100-65-315 80 130 2900 45.00 75 63
100-65-315 100 125 2900 50.06 75 68
100-65-315A 95 113 2900 45.23 55 64
100-65-315B 90 100 2900 40.50 55 60
100-65-315C 82 84 2900 34.76 45 54
125-80-160 160 50 2900 28.70 22 76
125-80-200 160 50 2900 28.7 37 76
125-80-200 180 45 2900 29.4 37 75
125-80-250 160 80 2900 47.75 55 73
125-80-250A 140 70 2900 39.20 45 69
125-100-200 180 52 2900 34 45 75
125-100-200 200 50 2900 35.4 45 77
125-100-200A 178 40 2900 26.60 37 73
125-100-250 200 70 2900 47.00 55 80
125-100-250 230 62 2900 51.80 55 75
125-100-250A 190 63 2900 44.00 55 74
125-100-250B 180 57 2900 40.00 45 70
125-100-250C 170 51 2900 34.72 45 68
125-100-250D 150 70 2900 40.00 45 70
125-100-315 200 125 2970 95.80 110 72
125-100-315 230 115 2970 103 110 70
125-100-315A 180 100 2970 70.10 90 70
150-150-200 250 56 2970 50.10 75 77
150-150-200 300 50 2970 52.00 75 79
150-150-250 300 80 2970 83.79 110 78
150-150-250A 260 80 2970 2970 75.50 90
150-150-250B 270 65 2970 66.50 75 72
200-150-400 350 50 1480 61.10 75 78
200-150-400A 330 45 1480 52.80 75 77
200-200-500 400 80 1480 117.7 132 74
250-200-400 500 50 1480 86.20 110 79
250-200-500 500 80 1480 143.5 160 76
250-200-500A 400 50 1480 75 90 73
300-300-500 800 80 1480 229 280 76
