Product Details:
Payment & Shipping Terms:
|
| Product Name: | Air Operated Diaphragm Pump | Structure: | Diaphragm Pump |
|---|---|---|---|
| Feature: | Corrosion - Resistant | Model: | QBK80 |
| Warranty: | 1 Year | Application: | Sewage Pump, Impurity Pump |
| High Light: | pneumatic diaphragm pump,electric diaphragm pump |
||

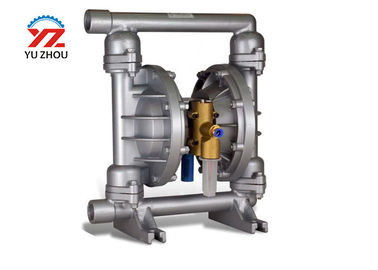

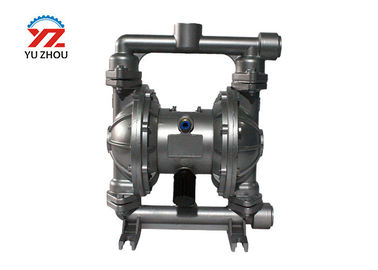

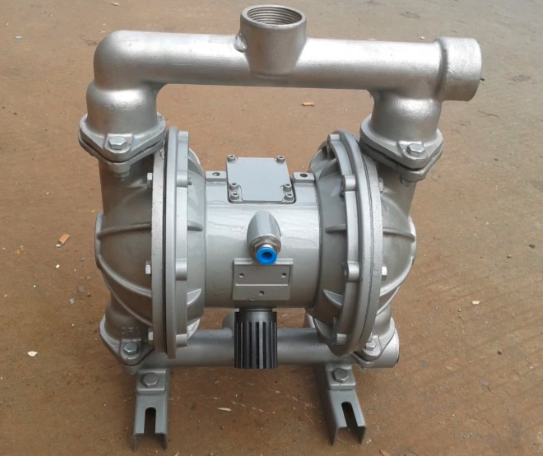

QBY Series Stainless steel Air Operated Diaphragm Pump Laboratory feeding pump corrosion - resistant booster pump
Brief introduction
1. QBY anti strong acid alkali chemical pneumatic pump air driven liquid pump is not only capable of exhausting the flow liquid , but also can convey some uneasy flowed medium, with the merits of self-priming pump, diving pump, shield pump, slurry pump and impurity pump etc.
| Specification | ||
| Inlet/outlet | 10-100mm | 3/8-4 inches |
| Capacity | 0-30m3/h | 16-480 L/Min |
| Head | 0-50m | |
| Sucktion Lift | 5-7m | |
| Exit Pressure | 6 kgf/cm2 | |
| Max Grain Dia | 10mm | |
| Max Air Pressure | 7 kgf/cm2 | |
| Max Air Consumption | 1.5 m3/min | |
| Certification | ISO9001:2008 | |
| Pump body | Stainless Steel, Cast Iron, Aluminum, Polypropylene, Engineering Plastic, Cast Steel+Teflon Lined, Cast Iron+Rubber Lined; | |
| Diaphragm | NBR,Viton,Neoprene,Teflon,EPDM,Santoprene,Hytrel,PVDE etc. | |
| Material of non-wetted parts | Cast Iron, Aluminum Alloy; | |
| Stainless Steel, Cast Iron, Aluminum, Polypropylene, Engineering Plastic, Cast Steel+Teflon Lined, Cast Iron+Rubber Lined; | ||
| Material of wetted parts | ||
Main usage
1. the pump can suck the peanut ,pickles,tomato slurry,red sausage,chocolate,hops and syrup etc.
2. the pump can suck the paint,pigment,glue and adhesive etc.
3. the pump can suck various glazed slurring of tile,porcelain,brick and chinaware etc.
4. the pump can suck various grinding materials,corrosive agent and clean the oil dirt etc.
5. the pump can suck various toxin and flammable or volatility liquid etc.
6. the pump can suck various wedge water,cement slurry and mortar etc.
7. the pump can suck various strong acid,alkali and corrosive liquid etc.
8. It can be used as a front-step transmission device of the solid and liquid separation equipment.
Product Use
Technical parameters:
| Model | Dia(mm) | Flow (m3/h) |
Head (m) |
Suction (m) |
Max Particle Size φ(mm) |
Air Pressure (kgf/cm2) |
| QBY-10 | 10 | 0.8 | 50 | 5 | 1 | 2-7 |
| QBY-15 | 15 | 1 | 50 | 5 | 1 | 2-7 |
| QBY-25 | 25 | 2.4 | 50 | 7 | 2.5 | 2-7 |
| QBY-40 | 40 | 8 | 50 | 7 | 4.5 | 2-7 |
| QBY-50 | 50 | 12 | 50 | 7 | 8 | 2-7 |
| QBY-65 | 65 | 16 | 50 | 7 | 8 | 2-7 |
| QBY-80 | 80 | 24 | 50 | 7 | 10 | 2-7 |
| QBY-100 | 100 | 30 | 50 | 7 | 10 | 2-7 |
Advantages:
