Product Details:
Payment & Shipping Terms:
|
| Product Name: | Self Priming Oil Transfer Pump | Usage: | Water /oil |
|---|---|---|---|
| Material: | Cast Iron/stainless Steel | Installation: | Horizontal |
| OEM: | YES | Warranty: | 1 Year |
| High Light: | kerosene transfer pump,oil drain pump |
||

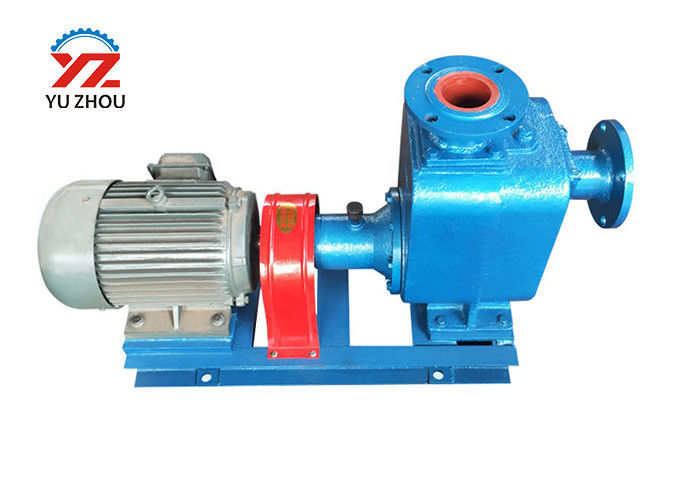

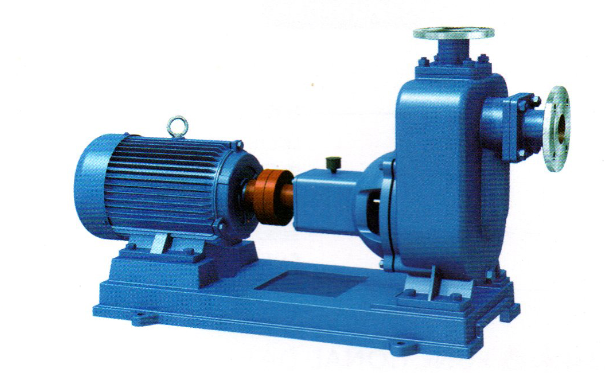

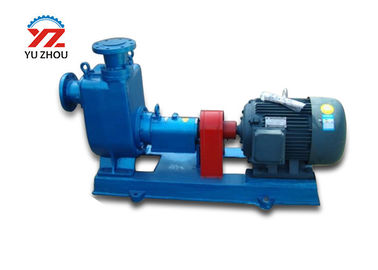

CYZ pumps are self priming centrifugual pump ,which are used to deliver the petrol, kerosene, diesel and other petroleum product; and the temperature of medium is -20℃~+80℃. It is a kind of load and unload oil pump in boat. And it can be used to convey oil in the land oil depot and oil truck. In addition, the pump also can transport sea water and fresh water.
The pump is composed of suction room, store liquid room, vortex room, liquid returning hole, gas and liquid dividing room etc. The pumps adopt the single-row radial ball bearings, and have the cooling room in the bottom of the bearing stand, and a seal ring is used between the high press and low press area in the pump. They adopt mechanical seals on shaft end.
This pump belongs to self-priming centrifugal oil pump, and the feature is simple construction, easy operation, convenient repairing, high displacement, high efficiency, wide application scope etc.
Performance Data:
| Model | Flow | Head | Suction | Rev | Power | Diameter (mm) | ||
| (m3/h) | (L/S) | (m) | (m) | (r/min) | (KW) | Inlet | Outlet | |
| 25CYZ-20 | 3.2 | 0.9 | 20 | 6.5 | 2900 | 0.75 | 25 | 25 |
| 25CYZ-32 | 3.2 | 0.9 | 32 | 6.5 | 2900 | 1.5 | 25 | 25 |
| 40CYZ-20 | 6.3 | 1.8 | 20 | 6.5 | 2900 | 1.1 | 40 | 32 |
| 40CYZ-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 4 | 50 | 40 |
| 50CYZ-12 | 15 | 4.2 | 12 | 6.5 | 2900 | 1.5 | 50 | 50 |
| 50CYZ-20 | 18 | 5 | 20 | 6.5 | 2900 | 2.2 | 50 | 50 |
| 50CYZ--35 | 14 | 3.9 | 35 | 6.5 | 2900 | 4 | 50 | 50 |
| 50CYZ-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 4 | 50 | 50 |
| 50CYZ-50 | 12.5 | 3.5 | 50 | 6.5 | 2900 | 5.5 | 50 | 50 |
| 50CYZ-60 | 15 | 4.2 | 60 | 6.5 | 2900 | 7.5 | 50 | 50 |
| 50CYZ-75 | 20 | 5.6 | 75 | 6.5 | 2900 | 11 | 50 | 50 |
| 65CYZ-15 | 30 | 8.3 | 15 | 6.5 | 2900 | 3 | 65 | 50 |
| 65CYZ-32 | 25 | 6.9 | 32 | 6 | 2900 | 5.5 | 65 | 50 |
| 80CY-13 | 35 | 9.7 | 13 | 6 | 2900 | 3 | 80 | 65 |
| 80CYZ-17 | 43 | 12 | 17 | 6 | 2900 | 4 | 80 | 65 |
| 80CYZ-22 | 40 | 11.1 | 22 | 6 | 2900 | 5.5 | 80 | 65 |
| 80CYZ-25 | 50 | 13.9 | 25 | 6 | 2900 | 7.5 | 80 | 80 |
| 80CYZ-32 | 50 | 13.9 | 25 | 6 | 2900 | 7.5 | 80 | 80 |
| 80CYZ-55 | 60 | 16.7 | 55 | 6 | 2900 | 18.5 | 80 | 80 |
| 80CYZ-70 | 60 | 16.7 | 70 | 6 | 2900 | 22 | 80 | 80 |
| 100CYZ-20 | 100 | 27.8 | 20 | 6 | 2900 | 11 | 100 | 80 |
| 100CYZ-40 | 100 | 27.8 | 40 | 6 | 2900 | 22 | 100 | 100 |
| 100CYZ-40A | 100 | 27.8 | 40 | 6 | 1450 | 22 | 100 | 100 |
| 100CYZ-65 | 100 | 27.8 | 65 | 6 | 2900 | 30 | 100 | 100 |
| 100CYZ-75 | 70 | 19.4 | 75 | 6 | 2900 | 30 | 100 | 100 |
| 150CYZ-45 | 170 | 47.2 | 45 | 5 | 2900 | 37 | 150 | 100 |
| 150CYZ-55 | 170 | 47.2 | 55 | 5 | 2900 | 45 | 150 | 100 |
| 150CYZ-65 | 170 | 47.2 | 65 | 5 | 2900 | 55 | 150 | 100 |
| 150CYZ-80 | 160 | 44.4 | 80 | 5 | 2900 | 55 | 150 | 100 |
| 200CYZ-63 | 280 | 77.8 | 63 | 5 | 1450 | 90 | 200 | 150 |
| 250CYZ-50 | 400 | 111.1 | 50 | 5 | 1450 | 90 | 250 | 200 |
| 300CYZ-50 | 500 | 138.9 | 50 | 5 | 1450 | 110 | 300 | 250 |
