Product Details:
Payment & Shipping Terms:
|
| Product Name: | Submersible Water Transfer Pump | Cable: | Standard 5m |
|---|---|---|---|
| Feature: | Mix-up Sewage Totally Discharge Of All The Sewage | Main Usage: | Sewage And Water |
| Power: | Electric | Warranty: | One Year |
| High Light: | submersible dirty water pump,submersible borehole water pump |
||
JYWQ/JPWQ series automatic mix non-clog submersible water transfer pump sewage motor pump
Brief Introduction
JYWQ/JPWQ series sewage submersible pump for dirty water
JYWQ/JPWQ High Flow Low Head Electric Sewage Pump Submersible Centrifugal Water Pump, which is designed based on the combination of the advanced technology from abroad and domestic pump performance features. This model has features such as energy-saving, anti-winding, non-clogging, automatic installation and automatic control. This pump is excellent in transporting sewage with solid-particles and long fibers.
This pump uses special structure impeller and new mechanical seals to make it more efficient in delivering sewage with solid particles and long fibers. Compared with traditional impellers, the new ones (spiral-flow type or double-leaf type) have an excellent delivery capacity, which improves the pump performance. It runs more smoothly without any vibration.
WQ+automatic mixer=JYWQ
Product features
1.Reasonable design, supporting a reasonable motor, high efficiency, energy-saving effect is remarkable.
2.Mechanical seal with double-channel series seal, the material is hard corrosion-resistant tungsten carbide, with durable, wear-resistant and so on, can effectively through the fibrous matter for 5 times of pump diameter and diameter of about 50% of the solid particles.
3.Compact overall structure, small volume, easy to move, easy to install, without having to build pump room, working while being submerged into water, and greatly reduce the project cost.
4.The pump seal oil chamber has a high precision anti-interference leakage detection sensor, thermal sensor is embedded in the stator winding, automatic protection of pump motor

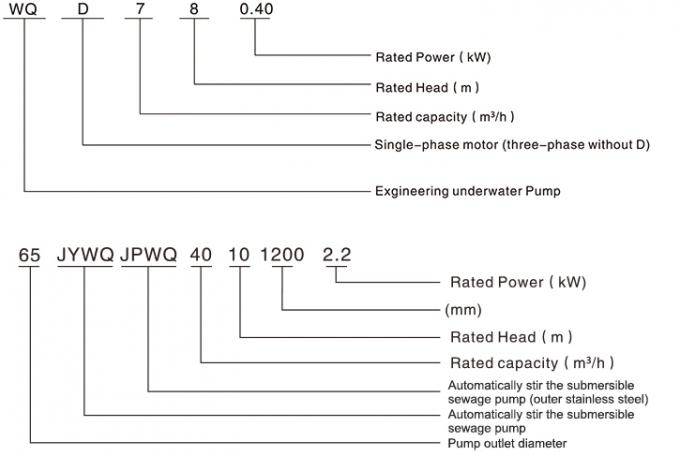

Product Model
Performance Parameters
| Type |
Diameter ( mm) |
Capacity ( m3/h) | Head (m) | Power ( KW) | Speed ( r/min) |
Efficiency ( %) |
| 25-8-22 | 25 | 8 | 22 | 1.1 | 2825 | 38.5 |
| 32-12-15 | 32 | 12 | 15 | 1.1 | 2825 | 40 |
| 40-15-15-1.5 | 40 | 15 | 15 | 1.5 | 2840 | 45.1 |
| 40-15-30-2.2 | 40 | 15 | 30 | 2.2 | 2840 | 48 |
| 50-20-7-0.75 | 50 | 20 | 7 | 0.75 | 1390 | 54 |
| 50-10-10-0.75 | 50 | 10 | 10 | 0.75 | 1390 | 56 |
| 50-20-15-1.5 | 50 | 20 | 15 | 1.5 | 2840 | 55 |
| 50-15-25-2.2 | 50 | 15 | 25 | 2.2 | 2840 | 56 |
| 50-18-30-3 | 50 | 18 | 30 | 3 | 2880 | 58 |
| 50-25-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 | 53 |
| 50-20-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 | 55 |
| 65-25-15-2.2 | 65 | 25 | 15 | 2.2 | 2840 | 52 |
| 65-37-13-3 | 65 | 37 | 13 | 3 | 2880 | 55 |
| 65-25-30-4 | 65 | 25 | 30 | 4 | 2890 | 58 |
| 65-30-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 | 56 |
| 65-35-50-11 | 65 | 35 | 50 | 11 | 2930 | 60 |
| 65-35-60-15 | 65 | 35 | 60 | 15 | 2930 | 63 |
| 80-40-7-2.2 | 80 | 40 | 7 | 2.2 | 1420 | 52 |
| 80-43-13-3 | 80 | 43 | 13 | 3 | 2880 | 50 |
| 80-40-15-4 | 80 | 40 | 15 | 4 | 2890 | 57 |
| 80-65-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 | 56 |
| 100-80-10-4 | 100 | 80 | 10 | 4 | 1440 | 62 |
| 100-110-10-5.5 | 100 | 110 | 10 | 5.5 | 1440 | 66 |
| 100-100-15-7.5 | 100 | 100 | 15 | 7.5 | 1440 | 67 |
| 100-85-20-7.5 | 100 | 85 | 20 | 7.5 | 1440 | 68 |
| 100-100-25-11 | 100 | 100 | 25 | 11 | 1460 | 65 |
| 100-100-30-15 | 100 | 100 | 30 | 15 | 1460 | 66 |
| 100-100-35-18.5 | 100 | 100 | 35 | 18.5 | 1470 | 65 |
| 125-130-15-11 | 125 | 130 | 15 | 11 | 1460 | 62 |
| 125-130-20-15 | 125 | 130 | 20 | 15 | 1460 | 63 |
| 150-145-9-7.5 | 150 | 145 | 9 | 7.5 | 1440 | 63 |
| 150-180-15-15 | 150 | 180 | 15 | 15 | 1460 | 65 |
| 150-180-20-18.5 | 150 | 180 | 20 | 18.5 | 1470 | 75 |
| 15-180-25-22 | 150 | 180 | 25 | 22 | 1470 | 76 |
| 150-130-30-22 | 150 | 130 | 30 | 22 | 1470 | 75 |
| 150-180-30-30 | 150 | 180 | 30 | 30 | 1470 | 73 |
| 150-200-30-37 | 150 | 200 | 30 | 37 | 1480 | 70 |
| 200-300-7-11 | 200 | 300 | 7 | 11 | 970 | 73 |
| 200-250-11-15 | 200 | 250 | 11 | 15 | 970 | 74 |
| 200-400-10-22 | 200 | 400 | 10 | 22 | 1470 | 76 |
| 200-400-13-30 | 200 | 400 | 13 | 30 | 1470 | 73 |
| 200-250-15-18.5 | 200 | 250 | 15 | 18.5 | 1470 | 72 |
| 200-300-15-22 | 200 | 300 | 15 | 22 | 1470 | 73 |
| 200-250-22-30 | 200 | 250 | 22 | 30 | 1470 | 71 |
| 200-350-25-37 | 200 | 350 | 25 | 37 | 1980 | 75 |
| 200-400-30-45 | 200 | 400 | 30 | 45 | 1480 | 70 |
| 250-600-9-30 | 250 | 600 | 9 | 30 | 980 | 74 |
| 250-600-12-37 | 250 | 600 | 12 | 37 | 1480 | 78 |
| 250-600-15-45 | 250 | 600 | 15 | 45 | 1480 | 75 |
| 250-600-20-55 | 250 | 600 | 20 | 55 | 1480 | 73 |
| 250-600-25-75 | 250 | 600 | 25 | 75 | 1480 | 73 |
| 250-800-12-45 | 250 | 800 | 12 | 45 | 980 | 76 |
| 300-500-15-45 | 300 | 500 | 15 | 45 | 980 | 70 |
| 300-800-15-55 | 300 | 800 | 15 | 55 | 980 | 73 |
| 300-600-20-55 | 300 | 600 | 20 | 55 | 980 | 75 |
| 300-800-20-75 | 300 | 800 | 20 | 75 | 980 | 78 |
| 300-950-20-90 | 300 | 950 | 20 | 90 | 980 | 80 |
| 300-1000-25-110 | 300 | 1000 | 25 | 110 | 980 | 82 |
| 350-1100-10-55 | 350 | 1100 | 10 | 55 | 980 | 84.5 |
| 350-1500-15-90 | 350 | 1500 | 15 | 90 | 980 | 82.5 |
| 350-1200-18-90 | 350 | 1200 | 18 | 90 | 980 | 83.1 |
| 350-1100-28-132 | 350 | 1100 | 28 | 132 | 740 | 83.2 |
| 350-1000-36-160 | 350 | 1000 | 36 | 160 | 740 | 78.5 |
| 350-1500-10-75 | 400 | 1500 | 10 | 75 | 980 | 82.1 |
| 400-2000-15-132 | 400 | 2000 | 15 | 132 | 740 | 85.5 |
| 400-1700-22-160 | 400 | 1700 | 22 | 160 | 740 | 82.1 |
| 400-1500-26-160 | 400 | 1500 | 26 | 160 | 740 | 83.5 |
| 400-1700-30-200 | 400 | 1700 | 30 | 200 | 740 | 83.5 |
| 400-1800-32-250 | 400 | 1800 | 32 | 250 | 740 | 82.1 |
| 500-2500-10-110 | 500 | 2500 | 10 | 110 | 740 | 85 |
| 500-2500-16-160 | 500 | 2500 | 16 | 160 | 740 | 84 |
| 500-2500-18-185 | 500 | 2500 | 18 | 185 | 740 | 83 |
| 500-2500-12-132 | 500 | 2500 | 12 | 132 | 740 | 85 |
| 500-2400-22-220 | 500 | 2400 | 22 | 220 | 740 | 85 |
| 500-2650-24-250 | 500 | 2650 | 24 | 250 | 740 | 85 |
| 500-2400-28-280 | 500 | 2400 | 28 | 280 | 740 | 8 |
