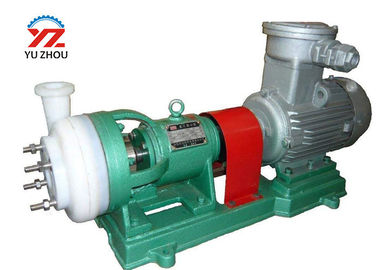

FSB Type Plastic Centrifugal Pump For Chemical Transfer Coupling Drive

China FSB Type Plastic Centrifugal Pump For Chemical Transfer Coupling Drive supplier
FSB Type Plastic Centrifugal Pump For Chemical Transfer Coupling Drive supplier FSB Type Plastic Centrifugal Pump For Chemical Transfer Coupling Drive supplier

Large Image :  FSB Type Plastic Centrifugal Pump For Chemical Transfer Coupling Drive

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: FSB

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Plywood case package
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Product Name: Chemical Pump Theory: Centrifugal Pump
Structure: Single Stage MOQ: One Set
Warranty: One Year Colour: Customized
High Light:

sulfuric acid transfer pump

,

centrifugal transfer pump

FSB Type Fluoroplastic Centrifugal Pump Plastic Alloy Pump Chemical Transfer Pump


1. FSB fluorine plastic chemical pump is reasonable design, compact structure, reliable performance, easy to use and saving energy.



2. Applied to convey acid, oxidant, corrosive medium (forbid to transit medium likely to crystallize) with physical property similar to water.



3. Wet parts are made of fluorine plastic alloy through reasonable design, mold pressing, machining, with advantages of strong corrosion resistance ability, high mechanical strength, non aging, no toxin decomposed.



4. It is widely used in the fields of chemical industry, petrol, medicine, pesticide, dye, smelting, paper making, plating, and food, etc.



Item Fluorine plastic pump for sulfuric acid
Fluorine plastic pump FSB type anticorrosive fluorine plastic pump
Model FSB
Material Fluorine plastic and customized
Color Blue and adjustable
Mode Horizontal
Drive Belt or coupling
Seal Soft packing seal or mechanical seal
Speed 2900r/min,1450r/min
Theory Centrifugal pump
Structure Single stage pump
Usage Corrosive fluid
Power Electric
Standard or Nonstandard Standard
Application chemical, petro-chemical, paper making, power station
Outlet diameter 25-200mm
Capacity 1.5-200m³/h
Head 10-64m
Power 1.5-55kw
Warranty 1year
Certificate ISO9001
OEM Acceptable
Feature Mechanical seal, performance reliable, high corrosive



Technical data:



Model Capacity Head Inlet Outlet Power Speed Suction Efficiency
(m3/h) (m) (mm) (mm) (KW) (r/min) (m) (%)
25FSB-10L 1.5 10 25 20 2.2 2900 6 29
25FSB-18L 3.6 18 25 20 2.2 2900 6 27
40FSB-15L 10 15 40 32 3 2900 6 40
40FSB-20L 10 20 40 32 3 2900 6 42
40FSB-30L 10 30 40 32 3 2900 6 38
40FSB-40L 10 40 40 32 4 2900 5.5 35
40FSB-50L 10 50 40 32 5.5 2900 5 33
50FSB-20L 15 20 50 40 4 2900 6 51
50FSB-25L 15 25 50 40 4 2900 6 49
50FSB-30L 15 30 50 40 4 2900 6 44.5
50FSB-40L 15 40 50 32 5.5 2900 5.5 35
50FSB-50L 15 50 50 32 7.5 2900 5.5 33
65FSB-32L 29 32 65 50 5.5 2900 6 57
65FSB-40L 29 40 65 40 7.5 2900 5.5 53
65FSB-50L 29 50 65 40 11 2900 5.5 46
80FSB-20L 50 20 80 65 7.5 2900 6 69
80FSB-30L 50 30 80 65 7.5 2900 5.5 64
80FSB-34L 50 34 80 65 11 2900 5.5 64
80FSB-38L 50 38 80 50 11 2900 5.5 60
80FSB-50L 50 50 80 50 15 2900 6 53
80FSB-80L 50 80 80 50 22 2900 5.5 36
100FSB-32L 100 32 100 80 18.5 2900 5.5 70
100FSB-40L 100 40 100 80 22 2900 5.5 70
100FSB-50L 100 50 100 65 30 2900 5.5 62
125FSB-32L 200 32 125 80 30 2900 5.5 72
125FSB-50L 200 50 125 100 45 2900 5.5 64
