Product Details:
Payment & Shipping Terms:
|
| Product Name: | Centrifugal Water Pump | Material: | Stainless Steel |
|---|---|---|---|
| OEM: | Yes | Pressure: | High Pressure |
| Theory: | Centrifugal Pump | Application: | Water /oil |
| High Light: | fire fighting water pump,centrifugal booster pump |
||

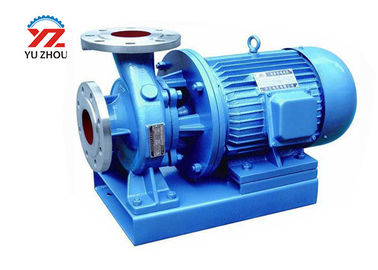

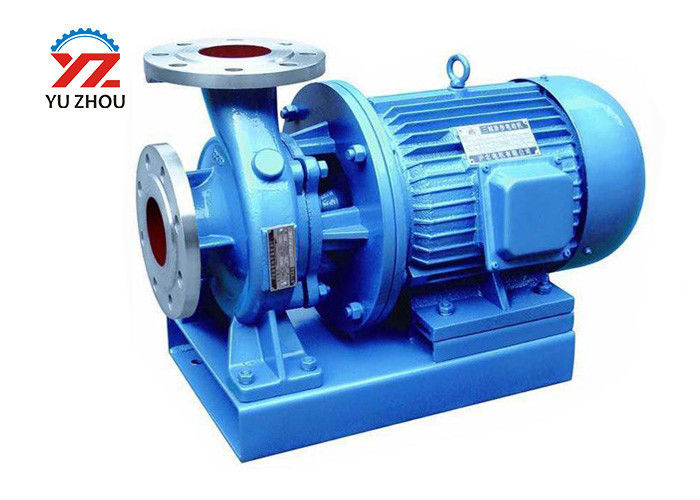

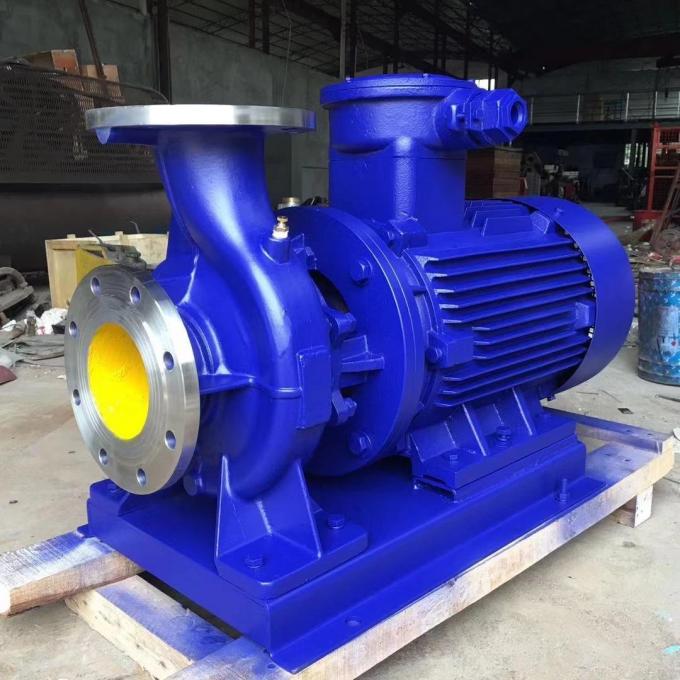

ISW series stainless steel Inline Circulating Centrifugal Water Pump
Application:
1, ISW inline centrifugal pump is used for conveying clean water and other liquids which physical and chemical properties is similar to clean water. It is suitable for water supply and drainage of Factory and city, high-rise building’s water supply, garden irrigation, fire boosting pump. Temperature ≤ 80 ° C
2, ISWB is for transporting oil or Flammable, explosive liquids such as petrol, diesel, kerosene and other petroleum products. Temperature : -20 ° C -120 ° C
3, ISWR is widely used as hot water circulation pump for boiler and urban heating system. Temperature ≤ 120 ° C
4, ISWH chemical pump is for transporting liquids, without solid particles, which corrosive and viscosity is similar to water. Pump is most used in petroleum production, chemical factory, power station, paper making, food, pharmaceutical area .Temperature : -20 ° C - 120 ° C.
Advantages:
1. ISW ISG electric drum pumps is a high-effective energy-saving pump.
2. Stable running, low noise, high concentricity of components. Bearings of low noise are used for the motor, the impellers are of best dynamic and static balance, no vibration at running and the environment thus being improved.
3. No leakage. The shaft is mechanically sealed with carbide alloy wearable material, settling the serious leakage of the filling seal of a centrifugal pump and extending the duration and ensuring the operation place clean and tidy.
4. Widely used in industrial and cities’ water supply and drainage, high buildings’ booster water supply, garden's irrigation, fire-fighting booster, remote water supply, warming systems, circular booster of cold&hot water in bath rooms as well as in competitions of equipments.
5. The pump, according to the operation condition of the workshop, is vertical or horizontal, and also according to the requirements for the flow and stroke, mounted in parallel and/or in series to increase the needed flow and stroke.
6. The flow range is 1.1-2400m3/h and the stroke range is 8-160m and there are basic types, by-pass type, A B C cutting type etc. And per the different flow medium and temperature, IRG/IRGB/ISWR hot water pump, IHG/IHGB/ISWH series chemical pumps and YG/YGB/ISWB oil pumps.
Technical data
| Model | Capacity (m3/h) | Lift head (m) | Speed (r/min) | Motor (KW) | Inlet&Outlet Diameter (mm) |
| 65-250 |
17.5 25 32.5 |
82 80 76.5 |
2900 | 15 | 65 |
| 65-250A |
16.4 23.4 30.4 |
71.5 70 67 |
2900 | 11 | 65 |
| 65-250B |
15 21.6 28 |
61 60 57.4 |
2900 | 7.5 | 65 |
| 65-315 |
17.5 25 32.5
|
127 125 122 |
2900 | 30 | 65 |
| 65-315A |
16.6 23.7 31 |
115 113 110 |
2900 | 22 | 65 |
| 65-315B |
15.7 22.5 29.2 |
103 101 98 |
2900 | 18.5 | 65 |
| 65-315C |
14.4 20.6 26.8 |
86 85 83 |
2900 | 15 | 65 |
| 65-100(I) |
35 50 65 |
13.8 12.5 10 |
2900 | 3 | 65 |
| 65-100(I)A |
31.3 44.7 58 |
11 10 8 |
2900 | 2.2 | 65 |
| 65-125(I) |
35 50 65 |
22 20 17 |
2900 | 5.5 | 65 |
| 65-125(I)A |
31.3 45 58 |
17.5 16 13.6 |
2900 | 4 | 65 |
| 65-160(I) |
35 50 65 |
35 32 28 |
2900 | 7.5 | 65 |
| 65-160(I)A |
32.7 46.7 61 |
30.6 28 24 |
2900 | 5.5 | 65 |
| 65-160(I)B |
30.3 43.3 56.3 |
26 24 21 |
2900 | 4 | 65 |
| 65-200(I) |
35 50 65 |
53.5 50 46 |
2900 | 15 | 65 |
| 65-200(I)A |
32.8 47 61 |
47 44 40 |
2900 | 11 | 65 |
| 65-200(I)B |
30.5 43.5 56.6 |
40.6 38 33.4 |
2900 | 7.5 | 65 |
| 65-250(I) |
35 50 65 |
83 80 72 |
2900 | 22 | 65 |
| 65-250(I)A |
32.5 46.7 61 |
73 70 63 |
2900 | 18.5 | 65 |
| 65-250(I)B |
30 43.3 56 |
62 60 54 |
2900 | 15 | 65 |
| 65-315(I) |
35 50 65 |
128 125 121 |
2900 | 37 | 65 |
| 65-315(I)A |
32.5 46.5 60.5 |
112.6 110 106.4 |
2900 | 30 | 65 |
| 65-315(I)B |
31 44.5 58 |
102.5 100 98 |
2900 | 30 | 65 |
| 65-315(I)C |
29 41 53.6 |
87 85 83 |
2900 | 22 | 65 |
| 80-100 |
35 50 65 |
13.8 12.5 10 |
2900 | 3 | 80 |
| 80-100A |
31.3 44.7 58 |
11 10 8 |
2900 | 2.2 | 80 |
| 80-125 |
35 50 65 |
22 20 17 |
2900 | 5.5 | 80 |
| 80-125A |
31.3 45 58 |
17.5 16 13.6 |
2900 | 4 | 80 |
| 80-160 |
35 50 65 |
35 32 28 |
2900 | 7.5 | 80 |
| 80-160A |
32.7 46.7 61 |
30.6 28 24 |
2900 | 5.5 | 80 |
| 80-160B |
30.3 43.3 56.3 |
26 24 21 |
2900 | 4 | 80 |
| 80-200 |
35 50 65 |
53.5 5. 46 |
2900 | 15 | 80 |
| 80-200A |
32.8 47 61 |
47 44 40 |
2900 | 11 | 80 |
| 80-200B |
30.5 43.5 56.6 |
40.6 38 33.4 |
2900 | 7.5 | 80 |
| 80-250 |
35 50 65 |
83 80 72 |
2900 | 22 | 80 |
| 80-250A |
32.5 46.7 61 |
73 70 63 |
2900 | 18.5 | 80 |
| 80-250B |
30 43.3 56 |
62 60 54 |
2900 | 15 | 80 |
| 80-315 |
35 50 65 |
128 125 122 |
2900 | 37 | 80 |
| 80-315A |
32.5 46.5 60.5 |
112.6 110 107.4 |
2900 | 30 | 80 |
| 80-315B |
31 44.5 58 |
102.5 100 98 |
2900 | 30 | 80 |
| 80-315C |
29 41 53.6 |
98 85 83 |
2900 | 22 | 80 |
| 80-350 |
35 50 65 |
146 150 142 |
2900 | 55 | 80 |
