High Performance Electric Motor Multistage Centrifugal Water Pump CDL/CDLF Series

China High Performance Electric Motor Multistage Centrifugal Water Pump CDL/CDLF Series supplier
High Performance Electric Motor Multistage Centrifugal Water Pump CDL/CDLF Series supplier High Performance Electric Motor Multistage Centrifugal Water Pump CDL/CDLF Series supplier High Performance Electric Motor Multistage Centrifugal Water Pump CDL/CDLF Series supplier

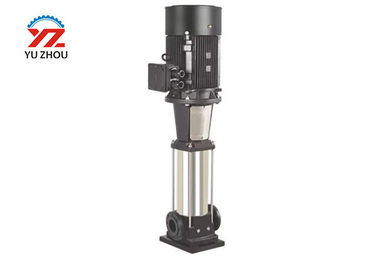

Large Image :  High Performance Electric Motor Multistage Centrifugal Water Pump CDL/CDLF Series

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO/SGS/CE
Model Number: CDL/CDLF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood case package
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Structure: Multistage Pump Usage: Water
Power: Electric Pressure: High Pressure
Material: Stainless Steel,Cast Iron Warranty: 1 Year
High Light:

multistage centrifugal water pump

,

centrifugal dewatering pump

CDL series High Performance Electric Motor Vertical Multi-stage Centrifugal Water Pump



Application:

1) Water Supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.

2) Industrial Boosting: process flow water system, cleaning system, high-pressure washing system, fire fighting system.

3) Industrial Liquid conveying: cooling and air-conditioning system, boiler water supply and condensing system,machine-associated purpose, acids and alkali.

4) Water Treatment: ultra filtration system.

5) Reverse Osmosis System.

6) Distillation System, separator, swimming pool.

7) Irrigation: Farmland irrigation, spray irrigation, dripping irrigation



Performance Range:

Capacity: 2 up to 500m³/h

Head: 15 up to 195 m

Efficiency : 72% up to 92.5%

Rotation Speed: 2900 r/min

Power: 0.37 up to 15 kw

NPSH: 1.8



Operation Conditions:



1) Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.

2) Liquid temperature: Normal temperature type:-15℃~ +70℃ ; Hot water type:-15℃~ +120℃

3) Ambient temperature: up to +40℃

4) Altitude:up to 1000m

5) When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.

6) PH 5-8

Special demands can be negotiated.



Motor:

1. Full-enclosed air cooled type two-pole standard motor

2. Protection Class: IP55

3. Insulation Class: F

4. Standard Voltage: 50Hz: 1 x 220-230 / 240V
3 x 200-220 / 346-380V
3 x 220-240 / 380-415 V
3 x 3 80-415 V



Working Principle: Centrifugal, Multistage
Main applications: Water
Driver: Electric motor
Power Specs: 220V/380/415V 3phase; 220/240V 1phase; 50hz/60hz,etc
Max.permissible fluid temperature: 80℃/120°C(hot water type)
Type of connection: Flange connection
Installation position: Vertical
Impeller/diffuser/inducer/shaft material: Stainless steel 304 or 316
Shaft seal type: Mechanical seal
Maximum drive rating: 110KW(150HP)
Maximum caliber: 150mm(6inch)
Maximum dischrage-side pressure: 2.55MPa(25.5bar)
Maximum head: 255m(836.4ft)
Flow rate range: 1-240m3/h(4.4-1056US.GPM)

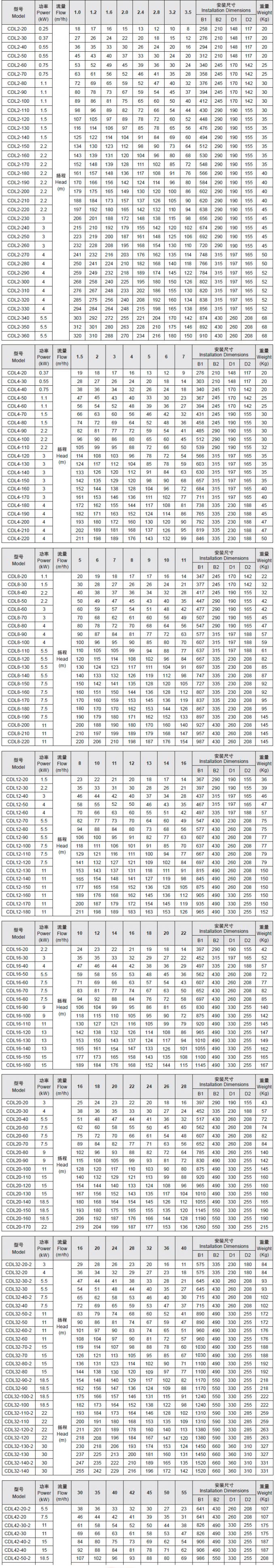

Technical data:

Type

Flow

(m³/h)

Lift head

(m)

Motor Power

(kw)

25CDL2-12×3 2 36 1.1
25CDL2-12×4 2 48 1.1
25CDL2-12×5 2 60 1.5
25CDL2-12×6 2 72 1.5
25CDL2-12×7 2 84 2.2
25CDL2-12×8 2 96 2.2
25CDL2-12×9 2 108 2.2
25CDL2-12×10 2 120 3
25CDL2-12×11 2 132 3
25CDL2-12×12 2 144 3
25CDL4-11×3 4 33 1.1
