Sliding Vane Electric Fuel Pump 140l/m Flow Rate , LPG Filling Pump YB-40 LPG Series

China Sliding Vane Electric Fuel Pump 140l/m Flow Rate , LPG Filling Pump YB-40 LPG Series supplier
Sliding Vane Electric Fuel Pump 140l/m Flow Rate , LPG Filling Pump YB-40 LPG Series supplier Sliding Vane Electric Fuel Pump 140l/m Flow Rate , LPG Filling Pump YB-40 LPG Series supplier

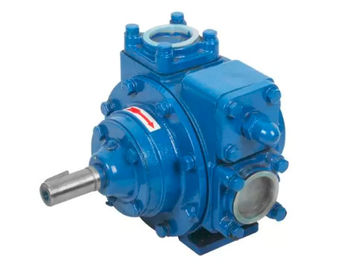

Large Image :  Sliding Vane Electric Fuel Pump 140l/m Flow Rate , LPG Filling Pump YB-40 LPG Series

Product Details:

Place of Origin: China
Brand Name: Yuzhou
Certification: ISO, SGS, CE
Model Number: YB-50

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Packing in wooden cases for export
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Product Name: LPG Transfer Pump Structure: Single-stage Pump
Application: LPG Station Power: 380v / 220v/440V
Flow Rate: 140L/M Max Speed: 940rpm
High Light:

lpg filling pump

,

lpg gas pump

YB-40 LPG sliding-vane pump electric fuel pump LPG filling transfer pump LPG station pump


Descreption:



Main Features



YB series Self-priming rotary vane pump with internal by-passvalve.The pumps use a rotor with sliding vanes

to draw the liquid. Thematerial of construction is nodular iron with sliding vanes built in aspecial self lubricating

material. Due to its efficiency, the pumpscan handle viscous and also volatile liquids and require lesshorsepower than other equivalent pumps. The pumps arecapable of higher flow-rates at lower number ofrevolutions than other designs.



Advantages



•Durable pumps for fast and quiet operation.



•Sliding vane design provides sustainedperformanceand trouble freeoperation, high reliability.



•Adjustable relief valve protects pump from excessive pressure.



•T-type strainers are available to protect pumpingsystem fromdamage caused by welding slag and othermatter in the piping and tanks.





Technical Specification:



Maximum Operating Limit



Model Nominal Flowrate Rated Speed Viscosity Differential Pressure Working Pressure Temperature Power
GPM LPM RPM SSU Cp PSI Bar PSI Bar 0F °C HP KW
YB-50 80 300 640 20,000 4,250 125 8.6 175 12.1 300 149 3 2.2
YB-65 157 594 640 20,000 4,250 125 8.6 175 12.1 300 149 5 4
YB-80 270 1,022 640 20,000 4,250 125 8.6 175 12.1 300 149 10 7.5
YB-100 505 1900 500 20,000 4,250 125 8.6 175 12.1 300 149 25 18.5



Packaging & Shipping



YB-50 Without Motor



Packing size(Cm): 44cm*35cm*35cm Net Weight:31KG Gross Weight:34KG



With Motor.V-Belt Driven



Packing size(Cm): 76cm*51cm*55cm Net Weight:86KG Gross Weight:118KG



Outer Packing:1pc/Wooden Case



Every Cowell product is strongly packed by wooden case with metal screw fixation .



FAQ:



Q1: What is the warranty for the pumps?

A1: All pumps have 12 months warranty.

Note: We will send new parts if cause by products quality problem, not wrong operation.

Q2: Are you a factory manufacturer?

A2: Yes, with more than 20 years experience, we are a professional Chinese pump manufacturer, specializes in kinds of oil transfer pump and oil equipment, including oil pump, gear pump, electric barrel pump, self-priming pump, vane pump, centrifugal pump, LPG pump and flow meter.



Q3: Your main export country?

A3: Our products had a good market in countries and regions of USA, Africa, India, Australia, Europe, and Middle East etc.

Q4: What certificate your products have?

A4: CE, ISO9001,2008, National explosion-proof electrical equipment certification and production license and DC explosion-proof certification.
